Roxtec Wedge Clip Installation Movie

By Chris Dodds on 26th February, 2013

Follow @ThorneanDerrick

Roxtec Cable Transits

Roxtec Rectangular Cable Transit Frames

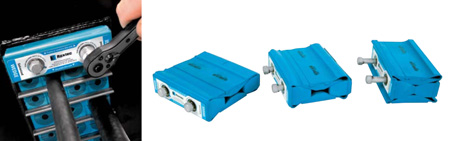

The Roxtec Wedge is for use with Roxtec Group RM frames with a rectangular packing space without built-in compression. The Roxtec Wedge compresses and seals the installation of cables, pipes, modules and stayplates.



Roxtec Wedge Kits / Parts

Wedge	External Dimensions	Weight
	Width
Galvanised
Wedge kit galv*	120mm / 4.724in	1.5kg / 3.307lb
Wedge 120 galv	120mm / 4.724in	0.8kg / 1.764lb
Wedge 60 galv	60mm / 2.362in	0.4kg / 0.882lb
Acid Proof Stainless Steel
Wedge kit AISI 316*	120mm / 4.724in	1.5kg / 3.307lb
Wedge 120 AISI 316	120mm / 4.724in	0.8kg / 1.764lb
Wedge 60 AISI 316	60mm / 2.362in	0.4kg / 0.882lb
C Wedge Galvanised
C Wedge kit galv*	120mm / 4.724in	0.65kg / 1.443lb
C Wedge 120 galv	120mm / 4.724in	0.40kg / 0.882lb
C Stayplate 120 galv	120mm / 4.724in	0.02kg / 0.051lb
C Wedge Acid Proof Stainless Steel
C Wedge kit AISI 316*	120mm / 4.724in	0.65kg / 1.443lb
C Wedge 120 AISI 316	120mm / 4.724in	0.40kg / 0.882lb
C Stayplate 120 AISI 316	120mm / 4.724in	0.02kg / 0.051lb

* The Wedge kit includes one Roxtec Wedge 120, five Stayplates, one Wedge Clip, one lubricant and installation instructions.



Roxtec Transits Seal Cable & Pipes - Typical Applications

• Sealing around cables or pipes that enter buildings through walls or floors
• Sealing around cables that enter into control cabinets
• Replacing cable glands for cable entries into terminal and junction boxes
• Sealing bulkheads, decks and electrical cabinets offshore
