Roxtec Round Cable Transit Frames

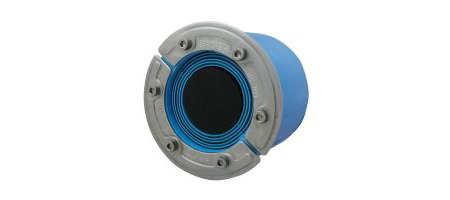

Roxtec RS round seal is a round seal for single cable or pipe entries in metal sleeves or core drilled holes. The two halves of the RS seal have removable layers and Roxtec technology called Multidiameter™ make the seals adjustable to fit a wide range of different cable or pipe diameters. The split construction makes it easy to install around existing cables or pipes.

Roxtec RS Seals Round Cable Transit Frames

Seal	For Cable / Pipe	For Hole Diameter	Weight
RS 25 AISI 316	0+3.6mm - 12mm	25mm - 26mm	0.04kg
RS 31 AISI 316	0+4mm - 17mm	31mm - 32mm	0.06kg
RS 43 AISI 316	0+4mm - 23mm	43mm - 45mm	0.2kg
RS 50 AISI 316	0+8mm - 30mm	50mm - 52mm	0.3kg
RS 68 AISI 316	0+26mm - 48mm	68mm - 70mm	0.5kg
RS 75 AISI 316	0+24mm - 54mm	75mm - 77mm	0.7kg
RS 100 AISI 316	0+48mm - 70mm	100mm - 102mm	1.0kg
RS 125 AISI 316	0+66mm - 98mm	125mm - 127mm	1.6kg
RS 100 AISI 316 woc	48mm - 70mm	100mm - 102mm	0.8kg
RS 125 AISI 316 woc	66mm - 98mm	125mm - 127mm	1.2kg
RS 150 AISI 316 woc	93mm - 119mm	150mm - 152mm	1.6kg
RS 175 AISI 316 woc	119mm - 145mm	175mm - 177mm	2.2kg
RS 200 AISI 316 woc	138mm - 170mm	200mm - 203mm	2.8kg
RS 225 AISI 316 woc	151mm - 181mm	225mm - 228mm	3.1kg
RS 250 AISI 316 woc	176mm - 206mm	250mm - 253mm	3.3kg
RS 300 AISI 316 woc	206mm - 236mm	300mm - 303mm	5.7kg
RS 350 AISI 316 woc	244mm - 286mm	350mm - 353mm	7.3kg
RS 400 AISI 316 woc	294mm - 336mm	400mm - 403mm	8.9kg
RS 450 AISI 316 woc	344mm - 386mm	450mm - 453mm	10.7kg
RS 500 AISI 316 woc	394mm - 436mm	500mm - 503mm	13.0kg
RS 550 AISI 316 woc	444mm - 486mm	550mm - 553mm	14.4kg
RS 600 AISI 316 woc	494mm - 536mm	600mm - 603mm	15.7kg
RS 650 AISI 316 woc	538mm - 580mm	644mm - 647mm	17.0kg





Roxtec Transits Seal Cable & Pipes - Typical Applications

• Sealing around cables or pipes that enter buildings through walls or floors
• Sealing around cables that enter into control cabinets
• Replacing cable glands for cable entries into terminal and junction boxes
• Sealing bulkheads, decks and electrical cabinets offshore.

The Roxtec RS is a round entry seal, consisting of two halves and an adaptable center with removable layers. Compression is integrated in the seal. Allows installation around an existing cable or pipe.
