Ripley SCS - Easy Strip Peelable Semi-Con Screen Scoring Tool

Cable Preparation & Stripping Tools

Ripley SCS Easy Strip Peelable Semi-Con Screen Scoring Tool



Ripley SCS semi-con scoring tool removes easy strip (peelable) type semi-con screens from high voltage power cables, this includes 11kV and 33kV HV power cable.

The Ripley SCS tool has an easy and precise blade adjustment from 0 to 0.16" (0-4mm) depth of 0.002" (0.05mm) increments for accurate semi-con scoring and is suitable for semi-con stripping on 3 core cables where tight work space necessitates a compact cable jointers tool.

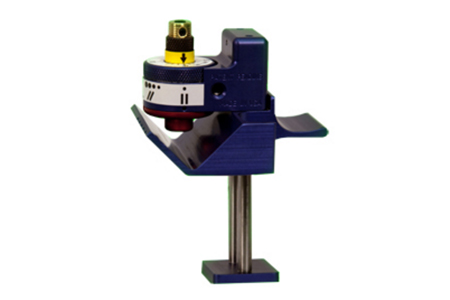

Ripley SCS Semi-con Scoring Tool

Ripley SCS Semi-con Scoring Tool Features

  • Accommodates cable ranges of 0.31"-1.77" (8mm-45mm)
  • Allows for longitudinal, spiral and square cuts
  • Blade calibration feature
  • Compact design for easier use and storage
  • Fast blade change
  • Easily mounts on the cable



Ripley SCS Semi-Con Screen Scoring Tool Specifications
Part No.

Ripley SCS - 43625 (metric scale), 43630 (inch scale)

Length

83.30 mm

Height

4.73 mm

Width

2.20 mm





Video: Ripley Semi-Con Scoring Tool (SCS)
