T&D Supply Aker Solutions With Prysmian 378 Stainless Steel Multicleats

By Chris Dodds on 1st October, 2012

Follow @ThorneanDerrick

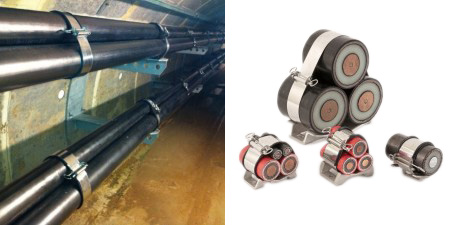

Prysmian Multicleats - 378 Series

316 Stainless Steel Cable Cleats



T&D have supplied Aker Solutions with Prysmian Multicleats 378AB52 to support offshore cable installations as part of the Talisman Frame Agreement.

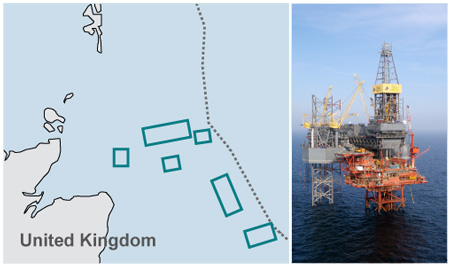

Aker Solutions Awarded Frame Agreement with Talisman Energy Norge AS

12 January 2012 - Aker Solutions has been awarded a frame agreement for engineering, procurement, installation and commissioning (EPCI) for Talisman Energy's maintenance and modifications projects on the Norwegian continental shelf.

Aker are very pleased to be working for Talisman Energy, and look forward to collaborating with them on further development of their operating assets offshore. Scope of work includes studies, engineering, procurement, fabrication, offshore installation and commissioning (EPCI) and maintenance services.

The fixed contract duration is three years from January 2012 to December 2014, with an option for six further years.

Studies, EPCI and maintenance and modifications will be managed from Stavanger, and prefabrication will take place at Aker Solutions' Egersund-yard.

Although the contract contains no firm spending commitment, the anticipated contract value for the initial three-year agreement is approximately NOK 870 million.

"We are very pleased to be working for Talisman Energy - an important operator in the North Sea, and look forward to collaborating with them on further development of their operating assets offshore," says Tore Sjursen, executive vice president for maintenance and modifications in Aker Solutions.

Contract parties are Aker Solutions subsidiary Aker Solutions MMO AS and Talisman Energy Norge AS.

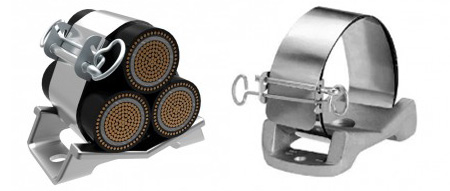

Prysmian BICC BICON Mulicleats 378 Features & Benefits

• Suitable for use with cable diameters 24 to 145mm
• ‡Large range take on each size
• Single or double bolt fixing
• ‡Operating temperatures -60°C to +105°C
• All straps manufactured from non-magnetic 316L Stainless Steel
• Plain Aluminium bases - for normal industrial areas or outdoor unpolluted areas
• Epoxy coated Aluminium versions or Stainless Steel available for harsher environments
• Bespoke tensioning adaptor included with every cleat and strap
• ‡Liners are made from LSOH materials
• Suitable for single core cables laid in trefoil formation with high fault current capacities
• Suitable for use with all standard ladder and tray systems
• Suitable for groups of dissimilar cables
• LUL APR Product ID 1996
• Patent number 2082242

Prysmian Bicon Multicleat 378 Series Specifications

Base Options							Cable Size
Two Bolts			Single Bolt		Standard	Heavy Duty
Alum-inium	Alum-inium Epoxy Coated	Stain-less Steel	Stain-less Steel				Trefoil		Single
							Min - Max Individual Cable Dia		Min - Max Individual Cable Dia
AB	AD	JB	PF		01	51	24mm - 34mm		36mm - 65mm
					02	52	30mm - 41mm		60mm - 85mm
					03	53	37mm - 47mm		80mm - 90mm
					04	54	43mm - 54mm		85mm - 110mm
					05	55	50mm - 60mm
					06	56	56mm - 67mm
					07	57	63mm - 73mm
					08	58	69mm - 80mm
					09	59	N/A		105mm - 120mm
						36	72mm - 82mm
						37	82mm - 95mm
						38	92mm - 105mm
						39	102mm - 115mm
						40	112mm - 125mm
						41	122mm - 135mm
						42	132mm - 145mm

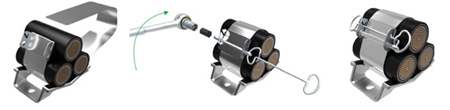

Pictured: Prysmian Bicon Multicleat Installation Sequence



T&D distribute the complete range of Prysmian BICON cable cleats including mulicleat, trefoil, claw, hook, single and two bolt cleats manufactured from plastic nylon (LSF), stainless steel and aluminium for LV-HV cable support and containment in short-circuit conditions.



• Further Reading

Invitation

Thorne & Derrick are inviting you to join LinkedIn’s fastest growing Discussion Group : Low & High Voltage Power, Cabling, Jointing, & Hazardous Area Electricals (LV-HV).

Discussion subjects include cable installations, cable jointing, electrical substation, overhead line and electrical construction at LV, 11kV, 33kV and EHV.

Network, engage and promote your profile, company or products with over 10,000 influencers.

Prysmian BICC BICON Multicleats 378AB52 - Stainless Steel Trefoil Single Cable Cleats
