T&D Stock Up On Prysmian 11kV Heat Shrink Cable Termination Kits To Keep Up With Customer Demand

By Chris Dodds on 25th July, 2012

Follow @ThorneanDerrick

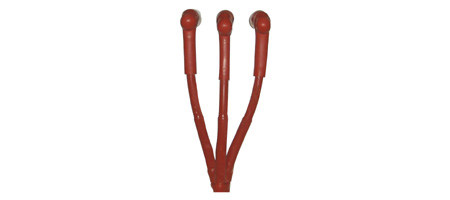

Prysmian 11kV Heat Shrink Terminations

Heatshrink MV Terminations



T&D, the UK distributor for Prysmian 11kV cable termination kits have purchased all Prysmian UK stocks to satisfy customer demand.

Prysmian 11kV heat shrink cable termination kits are quick and easy to install by trained cable jointers providing high reliability and excellent performance for high voltage cables. 11kV heat shrink termination kits terminate XLPE (BS6622), PILC (BS6480) and EPR (BS6883) insulated power cables.

Prysmian 11kV Heat Shrink Terminations Features & Benefits

• Easy installation
• Large range take
• UV resistant non-tracking outer tube
• Heat-activated sealant for water-tight seals
• Tough abrasion resistant outer coverings
• Cross core kits included as standard for paper cables
• Independently witnessed in accordance with BS7888, by ERA Technology



Prysmian Heatshrink 11kV Terminations To Suit Polymeric And Paper Insulated Three Core Cables

Conductor Cross Section	Indoor Termination
	Polymeric Cable	Paper Cable
16mm²	HIT3X-A-11	HIT3P-A-11
25mm²	HIT3X-A-11	HIT3P-A-11
35mm²	HIT3X-B-11	HIT3P-B-11
50mm²	HIT3X-B-11	HIT3P-B-11
70mm²	HIT3X-B-11	HIT3P-B-11
95mm²	HIT3X-C-11	HIT3P-C-11
120mm²	HIT3X-C-11	HIT3P-C-11
150mm²	HIT3X-C-11	HIT3P-C-11
185mm²	HIT3X-C-11	HIT3P-C-11
240mm²	HIT3X-C-11	HIT3P-C-11
300mm²	HIT3X-D-11	HIT3P-D-11
400mm²	HIT3X-D-11	HIT3P-D-11



• Further Reading



Invitation

Thorne & Derrick are inviting you to join LinkedIn’s fastest growing Discussion Group : Low & High Voltage Power, Cabling, Jointing, & Hazardous Area Electricals (LV-HV).

Discussion subjects include cable installations, cable jointing, electrical substation, overhead line and electrical construction at LV, 11kV, 33kV and EHV.

Network, engage and promote your profile, company or products with over 10,000 influencers.





Prysmian Heatshrink MV Terminations For 11kV Systems
