Prysmian FP Firefix Used To Install FP200 Gold and FP Plus Fire Resistant Cables - Waterside Theatre

Prysmian FP Fire Resistant Cables

Prysmian FP Firefix Cable Clips

Prysmian FP Firefix Fire Resistant Clips

Prysmian FP Firefix clips have been used to install the 15,000 metres of Prysmian FP200 Gold and FP Plus supplying and protecting the prestigious Waterside Theatre in Aylesbury. Prysmian FP cables and fixings were used for the fire alarm and emergency lighting system with additional voice evacuation.

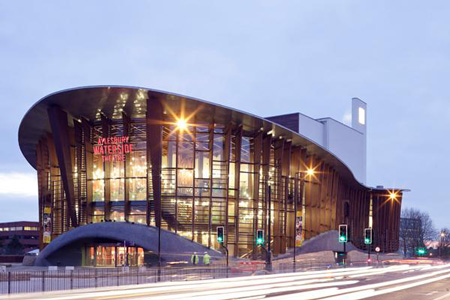

Pictured: Waterside Theatre, Aylesbury

Waterside Theatre Aylesbury

The installation began in January 2009 as part of a £3.8 million electrical installation by Darke and Taylor Ltd. The new theatre has replaced the previous Civic Centre Theatre and is expected to welcome 300,000 visitors each year. With this in mind, an extensive fire safety system of the highest standard was required to guarantee the safety of staff and visitors.

Paul McNaughton, Managing Director at Darke and Taylor explains: ‘Prysmian is the preferred cable manufacturer that we like to use at Darke & Taylor as its products offer excellent fire rating values with all necessary third party approvals. As a result, we were pleased with the choice of Prysmian FP200 Gold and Prysmian FP Plus.’

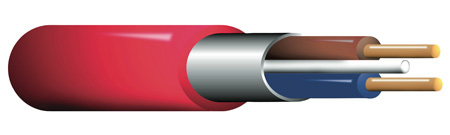

Prysmian FP Fire Resistant Cables

Paul continues, ‘Prysmian FP200 Gold and Prysmian FP Plus are satisfying products to work with as the cables can be terminated and stripped with ease. We also requested additional Prysmian FP Firefix components to secure a speedy installation.’

Prysmian's unique FP Firefix allows FP cables to be installed up to 10 times faster than with AP clips. The 316L stainless steel clip is coated with an intumescent red or white finish and meets the fixing requirements of BS5839-1:2002 and BS5266-1:2011 for fire resistant cables.

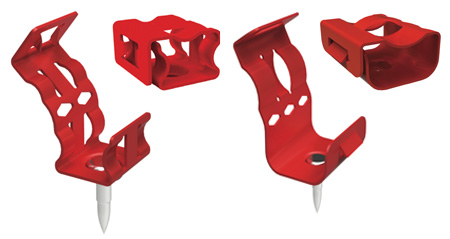

Pictured: Prysmian FP FIREFIX Single & Double Clips

Prysmian FP FireFix Clips

Prysmian FP Firefix Clip Features & Benefits

  • LUL APR Product ID 1960
  • Nail fixed fire resistant clip
  • Fast easy and meets the cable support requirements of British standards: BS5839-1: 2002, BS5266-1:2011 and BS5839-8: 2006
  • Designed to be used with the Spit Pulsa gas nailing technology for rapid installation
  • Made from corrosion resistant stainless steel, coated with an intumescent LSOH coating in either white or red to match the cable
  • Should be installed in accordance with BS7671 / IEE wiring regulations, or other appropriate code
  • Can be fixed to steel, block work, composite steel decking, brick or concrete
  • The fixing of the clip and installation of the cable takes just 10 seconds
Prysmian FP Firefix Single & Double Cable Clips
Clip Selection Clip Details
Design Number Cable Diameter A
Standard Min Max Installed Dimensions Nail Size Weight Ea Kit Weight
H W L

Prysmian FP Firefix Single Clip

FPNF01R 7.7mm 8.2mm 13.6mm 13.8mm 15.3mm 17mm 4.4g 2.5kg
FPNF01W 7.7mm 8.2mm 13.6mm 13.8​mm 15.3mm 17mm 4.4g 2.5kg
FPNF01R15 7.7mm 8.2mm 13.6mm 13.8​mm 15.3mm 15mm 4.2g 2.5kg
FPNF01W15 7.7mm 8.2mm 13.6mm 13.8mm 15.3mm 15​mm 4.2​g 2.5kg
FPNF03R 8.2mm 9.2mm 13.6mm 13.8​mm 15.3mm 15mm 4.2​g 2.5kg
FPNF03W 8.2mm 9.2mm 13.6mm 13.8​mm 15.3mm 15​mm 4.2​g 2.5kg

Prysmian FP Firefix Double Clip

FPNF02R 7.7mm 8.5mm​ 15mm 21.6mm 25.4mm 17mm 8.9g 4.5kg
FPNF02W 7.7mm 8.5mm​ 15mm 21.6mm 25.4mm 17mm 8.9g 4.5kg
FPNF02R15 7.7mm 8.5mm​ 15mm 21.6mm 25.4mm 17mm 8.7g 4.45kg
FPNF02W15 7.7mm 8.5mm​ 15mm 21.6mm 25.4mm 17mm 8.7g​ 4.45kg​
FPNF04R 8.5mm 9.0mm 15mm 21.6mm 25.4mm 17mm 8.9g 4.5kg
FPNF04W 8.5mm​ 9.0mm 15mm 21.6mm 25.4mm 17mm 8.9g 4.5kg
FPNF04R15 8.5mm​ 9.0mm 15mm 21.6mm 25.4mm 15​mm 8.7g​ 4.45kg​
FPNF04W15 8.5mm​ 9.0mm 15mm 21.6mm 25.4mm 15​mm 8.7g​ 4.45kg​


Prysmian FP200 Gold and Prysmian FP Plus comply with fire alarm standard, BS 5839 and the emergency lighting standard, BS 5266 as “standard” and “enhanced” fire resistant cable. In addition, FP200 Gold and FP Plus have received BASEC and LPCB approval and both incorporate Prysmian’s unique damage resistant Insudite, which greatly reduces the risk of third party damage.

The Aylesbury Waterside Theatre shows a range of West End touring plays and musicals as well as world-class opera and ballet.
