Guernsey High School Gets Updated With Prysmian Afumex LSX & FP Plus Cables

By Chris Dodds on 8th August, 2012

Follow @ThorneanDerrick

Prysmian FP Fire Resistant Cables

Prysmian Afumex LSX Low Smoke Zero Halogen Screened Wiring Cables

Prysmian Afumex LSX and FP Plus have been specified and installed at the new campus for Les Beaucamps High School in Guernsey. Prysmian Afumex LSX will supply general lighting and power in all main classrooms, offices and service corridors.

Prysmian FP Plus forms part of the fire alarm system with its enhanced performance. Safety for staff and pupils is of paramount importance and with this in mind Lauren Lloyd (Guernsey) Ltd, opted for Prysmian FP cables in their installation at the new facility.

Pictured: Les Beaucamps High School, Guernsey

The main contractor at Les Beaucamps site, RG Falla, also based in Guernsey, engaged Lauren Lloyd for the electrical work at the site. Installation began in October 2011, with 35km of Afumex LSX™ 1.5mm² to 4mm², two and three core and also 10km of two core 1.5mm² FP Plus™

Contracts Director Gavin Charles, at Lauren Lloyd explains: ‘Afumex LSX™ was used on this project as an alternative to PVC Twin and Earth as this is a more robust alternative with a better reaction to fi re. This was my fi rst experience of Afumex LSX™ and I am very happy with the results.’

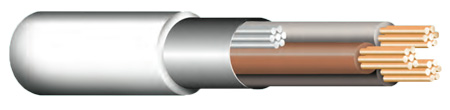

Pictured: Prysmian Afumex LSX Screened Wiring Cables

Afumex LSX is a low smoke zero halogen (LSOH) cable with flame retardant properties, a safer alternative to PVC in the event of a fi re. Afumex LSX™ will self extinguish when the fl ame is removed producing low volumes of smoke, free from toxic halogen acid gases present in the PVC alternative.

Prysmian Afumex LSX Cable Features

• Easy to strip, terminate and gland
• Easy to install for surface clipped, tray and basket installations, giving reduced installation costs
• A robust screen that meets the nail penetration test given in BS 8436 70°C operating and 250°C short circuit temperature
• Full size CPC conductor on 2, 3 and 4 core cables
• Provides excellent resistance to ignition and ame spread and produces very low levels of smoke and virtually no acidic gases when burnt, safeguarding human life and protecting equipment
• Dressable - retains shape when installed
• Plain annealed copper solid or stranded (class 1 or 2) conductor complying with BS EN 60228
• Robust thermoplastic LSOH sheath
• AFUMEX LSX screened wiring cables comply with 1.0mm² to 2.5mm²
• AFUMEX LSX (4mm and 6mm) screened wiring cables are rated at 600/1000V

Prysmian Afumex LSX Low Smoke Zero Halogen Cable Specifications

Nominal Cross Sectional Area	Approval Overall Diameter	Approx Cable Weight	Max Conductor Resistance At 20°C	Current Rating DC Or Single Phase AC Enclosed	Current Rating DC Or Single Phase AC Perforated Tray	Current Rating Three Phase AC Perforated Tray​
Two Core
1mm²	8 mm	80 kg/km	18.1 ohms/km	13 Amps	17 Amps	-
1.5mm²	9.5 mm	100 kg/km	12.1 ohms/km	16.5 Amps	22 Amps	-
2.5mm²	10.5 mm	140 kg/km	7.41 ohms/km	23 Amps	30 Amps​	-
4.0mm²	12 mm	190 kg/km	4.61 ohms/km	30 Amps	40 Amps​​	-
6mm²	13 mm	260 kg/km	3.08 ohms/km	38 Amps​	51 Amps​​​	-
Three Core
1mm²	8.5 mm	105 kg/km	18.1 ohms/km	13 Amps	17 Amps	14.5 Amps
1.5mm²	9.5 mm	120 kg/km	12.1 ohms/km​	16.5 Amps​	22 Amps​	18.5 Amps
2.5mm²	10.5 mm	170 kg/km	7.41 ohms/km	23 Amps	30 Amps​​	25 Amps
4mm²	12.5 mm	230 kg/km	4.61 ohms/km	30 Amps	40 Amps​​​	34 Amps​
Four Core
1mm²	9 mm	125 kg/km	18.1 ohms/km	13 Amps	17 Amps	14.5 Amps
1.5mm²	10.5 mm	155 kg/km	12.1 ohms/km​	16.5 Amps​	22 Amps​	18.5 Amps
2.5mm²	11.5 mm	200 kg/km	7.41 ohms/km	23 Amps	30 Amps​​	25 Amps​
4mm²	13.5 mm	280 kg/km	4.61 ohms/km	30 Amps	40 Amps​​​	34 Amps​

Prysmian’s FP Plus with enhanced Insudite insulation provides an unmatched combination of rigidity and flexibility resulting in an easy installation for an enhanced cable. Both FP Plus and Afumex LSX achieve full compliance with test requirements including BASEC and LPCB approval.

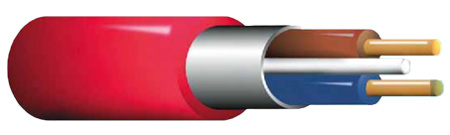

Pictured: Prysmian FP Plus 'Enhanced' Fire Resistant Cable

Prysmian FP Plus Fire Resistant Cable Features

• Plain annealed copper solid circular conductor complying with BS EN 60228 class 1
• High performance damage resistant enhanced InsuditeTM. British Standard Type EI5
• Laminated aluminium tape screen bonded to sheath and in contact with full size tinned annealed copper circuit protective conductor which provides automatic screen earthing
• Robust thermoplastic enhanced LSOH sheath

• FP PLUS has excellent data/signal transmission characteristics making it ideal for voice alarm, addressable and networked systems

Prysmian FP Plus Enhanced Fire Resistant Cable Specifications

Nominal Cross Sectional Area	Mean Overall Diameter	Approx Cable Weight	Max Conductor Resistance At 20°C	Current Rating DC Or Single Phase AC Enclosed	Current Rating DC Or Single Phase AC Clipped Direct	Volt Drop DC Or Single Phase AC
Two Core
1mm²	9.2 mm	115 kg/km	12.1 ohms/km	16.5 Amps	19.5 Amps	29 mV/A/m
1.5mm²	11.5 mm	176 kg/km	7.4 ohms/km	23 Amps	27 Amps	18 mV/A/m



Les Beaucamps High School currently houses 500 students and additional facilities are being added to cater for an increased intake.

The new facilities are being built adjacent to the current school so that the pupils can carry on with their studies undisturbed. The school is currently in the fi rst phase of the £30 million redevelopment due for completion July 2012, with the second phase, following the demolition of the old school, providing a sports hall, swimming pool and external sports facilities ready for completion in December 2013.
