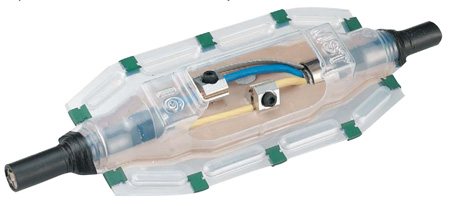

Prysmian JST Low Voltage Universal Cable Joints for Armoured SWA Cables



Prysmian low voltage resin straight cable joints are suitable for LV jointing armoured SWA XLPE and polymeric cables with copper conductors from 1.5sqmm-400sqmm.



Prysmian JST Low Voltage Universal Cable Joint Kit Features

• Low Hazard Isocynate free JEM resin
• Transparent vacuum formed shells which offer greater working dimensions & interlocking flange seals
• Prysmian JST cable joints can be used with either Compression or Mechanical connectors
• Low Voltage Straight Joints for 600/1000 Volt SWA cables to BS5467, BS6346 and IEC 502
• Tested and approved to BS EN 50393 & ENA ER C81
• Prysmian JST kit includes constant force spring Armour Bonds



Prysmian JST LV Universal Cable Joint Kit Data

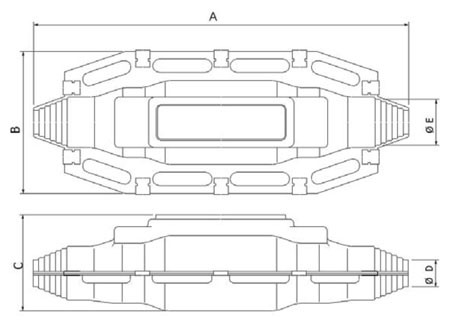

Joint Reference	Shell Dimensions					Nominal Area Of Conductor
	A	B	C	D	E	2 Core Max	3 Core Max	4 Core Max
Prysmian JST6	240mm	115mm	75mm	12mm	22mm	10mm²	6mm²	6mm²
Prysmian JST16	310mm	125mm	85mm	20mm	35mm	25mm²	25mm²	16mm²
Prysmian JST35	390mm	130mm	100mm	24mm	40mm	35mm²	35mm²	35mm²
Prysmian JST95	620mm	160mm	130mm	27mm	51mm	95mm²	95mm²	95mm²
Prysmian JST185	795mm	230mm	205mm	40mm	65mm	185mm²	185mm²	185mm²
Prysmian JST300	950mm	240mm	210mm	55mm	80mm	300mm²	300mm²	300mm²
Prysmian JST400	1100mm	275mm	260mm	56mm	92mm	400mm²	400mm²	400mm²
