Low Voltage LV Resin Cable Joints

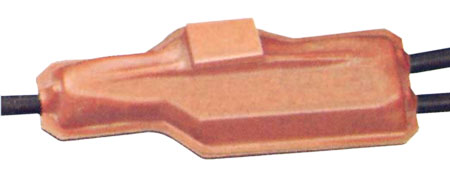

Prysmian FRZHMB LV FP Fire Performance FP Branch Cable Joint Kits




Prysmian FRZHMB low voltage FP fire performance branch cable joints are suitable for LV jointing armoured SWA XLPE and polymeric cables with copper conductors from 2.5sqmm-120sqmm.

Prysmian FRZHMB Low Voltage FP Cable Joint Kits Features

• Low Hazard Isocynate free JEM resin
• Rigid glass reinforced phenolic joint shells which are both fire retardant and LSOH
• Prysmian FRZHMB cable joints have a slim-line design for use with compression connectors
• Meet the Fire resistance requirements of BS6387 categories C, W & Z
• Low Voltage Branch Joints for 600/1000 Volt fi re performance insulated SWA cables with copper conductors
• Prysmian FRZHMB cable joint kits are tested and approved to BS EN 50393 & ENA ER C81
• The kits include constant force spring Armour Bonds



Prysmian FRZHMPJ LV Fire Performance Cable Joints Data

Joint Reference	Dimensions
	A	B	C
Prysmian FRZHMPJ2	300mm	85mm	70mm
Prysmian FRZHMPJ3	405mm	100mm	80mm
Joint Selection For 2 3 & 4 Core Cables
Joint Reference	Nominal Area Of Conductor
	2 Core Max	3 Core Max	4 Core Max
Prysmian FRZHMB1	35mm²	25mm²	10mm²
Prysmian FRZHMB2	100mm²	95mm²	50mm²
