3M Scotchcast 15kV Induced Voltage Pilot Cable Joint Solutions For Utilities

By Chris Dodds on 21st April, 2015

Follow @ThorneanDerrick

T&D have delivered 3M Pilot Cable Joints to CCC Cable Systems working with J Murphy & Sons Ltd UK.

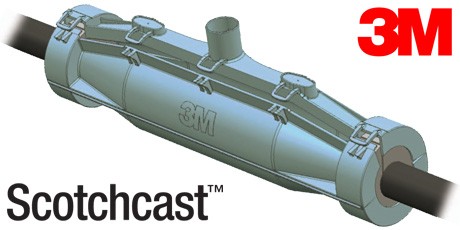

3M Scotchcast cable joints suitable for underground direct burial were specified and supplied by T&D to joint Draka Pilot Cable type LT-EFEWYZ : copper concentric cable, jelly filled, inner PE cable sheath, steel wire armoured SWA and PVC outer sheath.

3M pilot cable jointing kits are suitable for 4 pair, 7 pair, 19 pair, 37 pair and 61 pair cables.

3M Pilot Cable Joints 15kV Induced Voltage - Specification

3M Pilot Cable Joints 15kV Induced Voltage - Instruction

3M Pilot Cable Joints 15kV Induced Voltage - Kit List

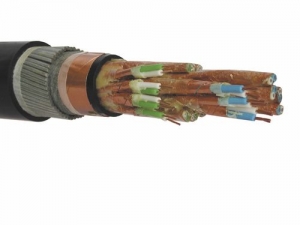

Draka Pilot Cables, 15kV Induced Max Voltage - PE Sheath, SWA Armoured, Jelly Filled

Pilot cables are used for control, protection, signalling, telecommunications and data transmission purposes associated with power distribution and transmission systems. Such systems are mainly operated by the electrical supply industry and similar applications occur in many industrial systems. Pilot cables are insulated with special materials which are designed to protect them from the danger of induced voltages coming from other cable circuits in close proximity (for example, faults in 11kV 33kV high voltage power cable circuits).

3M Pilot Cable Joints 15kV Induced Voltage
