PE Insulated, SWA Armoured, Multi Pair 0.9sqmm Cable Joints

Pilot & Telecom Cable Joints

3M Scotchcast LVI-PT

PE Insulated, SWA Armoured, Multi Core

0.9sqmm Cable Joints

3M Pilot and Telecom cable joints suit multicore (2-37 core) and multipair (2-100 pair) polyethylene (PE) or PVC insulated cables, steel wire armoured and unarmoured.

Scotchlok UR2 connectors provide quick and reliable jointing of multi-pair stranded copper conductors, compression crimp connectors are recommended for multi-core cable joints.

3M Pilot and Telecom cable jointing kits are suitable for cable jointing polymeric pilot and telecom cables in indoor, outdoor, submerged and underground direct burial applications.

3M Scotchcast Resin Cable Jointing Kits - Pilot & Telecom Cables, Contents

• Translucent cable jointing shell
• 3M Scotchcast 470W resin
• 3M Scotch 23 self amalgamating tape
• Constant force springs
• Spacer web tape
• Cable jointers instruction

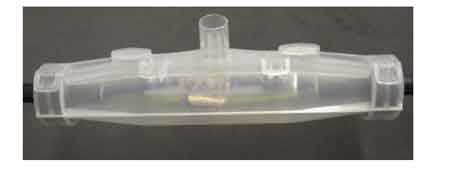

Pictured : 3M LVI-PT Pilot Cable Joints

3M Scotchcast Cable Jointing Kits - Pilot & Telecom Cables, Max Cable OD

• 3M LVI-1/2PT Resin Joint Kits - 25mm
• 3M LVI-1/3PT Resin Joint Kits - 32mm
• 3M LVI-1/4PT Resin Joint Kits - 36mm
• 3M LVI-1/5PT Resin Joint Kits - 45mm
• 3M LVI-1/6PT Resin Joint Kits - 54mm

Video : 3M Scotchcast Resin Cable Joints For Multi-Core & Multi-Pair Pilot & Telecom Cables

4-7 Multi Pair 0.9sqmm Cable Joint - PE Insulated SWA Armoured Cables - 3M Scotchcast LVI-1/3PT

19 Multi Pair 0.9sqmm Cable Joint - PE Insulated SWA Armoured Cables - 3M Scotchcast LVI-1/4PT

37 Multi Pair 0.9sqmm Cable Joint - PE Insulated SWA Armoured Cables - 3M Scotchcast LVI-1/5PT

61 Multi Pair 0.9sqmm Cable Joint - PE Insulated SWA Armoured Cables - 3M Scotchcast LVI-1/6PT
