Prysmian Panzerflex Cables - Flexible Power & Control Cables

By Chris Dodds on 6th February, 2013

Follow @ThorneanDerrick

Low Voltage LV Cable Joints

Panzerflex & Protolon Cable Joints for Port Authorities



T&D continue to supply HV High Voltage Cable Contractors with specialised Heat Shrink Cable Termination Kits for Panzerflex flexible rubber cables operating at 11kV.

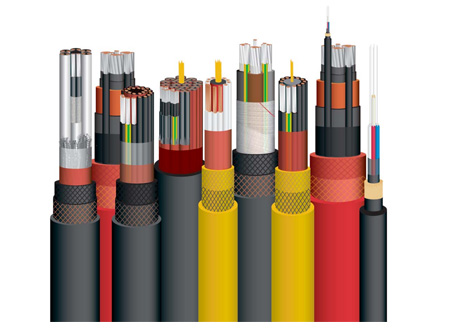

Palazzo Panzerflex Prysmian Cables

Palazzo has secured a solid reputation of providing quality cable products through their history of manufacturing special purpose cables for unique applications. Depending on its intended use and the needs of the customer, specially tailored high voltage cables can be designed and manufactured according to a wide range of specifications and applications. For cables that will be continuously flexed, reeled, tensioned, and installed in demanding and harsh environments, Palazzo has developed a flexible cable called the Palazzo Panzerflex that excels in its use.

For the latest technology of cables for indoor applications, Palazzo can produce the Mobile Cable produced in a halogen free version, with no toxic gases or opaque fumes emissions, in accordance with the most severe international standards. Their ability to offer specialization means that Palazzo cables are more able to meet each customer´s particular requirements and demands than general purpose flexible cables. Palazzo´s unique ability to customize their cables to a specific need or application helps to improve performance and reduce down time.



Palazzo Panzerflex Cable Benefits

• Highly duration under constant severe movable conditions
• Tinned copper conductors provide easy solder ability and corrosion resistance
• Easy stripping
• Outstanding physical and electrical properties
• Ozone resistant
• Extremely resistant to inducted twisting and corkscrewing
• Increased vertical suspension performance and conductor life
• Excellent resistance to heat, oil, gasoline, kerosene, and alkalis in both severe indoor and outdoor applications
• Short manufacturing lengths availability



Typical Panzerflex applications

Mobile installations on all types of harbour cranes, container cranes, ship unloaders, stackers and reclaimers, trippers, mobile generator sets and mining & tunnelling equipment.



Palazzo Panzerflex Cable Types

PANZERFLEX-L 0.6/1kV		Power cables in line with VDE 0250 part. 814 (N)SHTÖU-J / -O rubber cables suitable for reeling & festoon system
PANZERFLEX-L 0.6/1kV		Control cables in line with VDE 0250 part. 814 (N)SHTÖU-JZ / -OZ rubber cables suitable for reeling & festoon system
PANZERFLEX-SIGNAL 0.6/1kV		Signal and control cables in line with VDE 0250 part. 814 (N)SHTÖU-JZ / -OZ suitable for festoon system and simple reeeling operation
PANZERLITE 0.6/1kV		Control cables for vertical application Polyurethane double sheathed cables
PANZERFLEX-L VS 0.6/1kV		Power and control cables for extreme application in line with VDE 0250 part. 814 (N)SHTÖU-J/ -O; (N)SHTÖU -JZ / OZ tough rubber sheathed cable
PANZERFLEX-ELX 3.6/6 ÷ 12/20kV		Reeling cables in line with VDE 0250 part. 813 (N)TSCGEWÖU - H.V. reeling cable 6 to 20kV
PANZERFLEX-ELX + OF 3.6/6 ÷ 12/20kV		Reeling cables in line with VDE 0250 part. 813 with integrated OPTICAL FIBRES- (N)TSCGEWÖU - H.V. reeling cable 6 to 20kV
PANZERFLAT-ELX 3.6/6 ÷ 12/20kV		Reeling cables in line with VDE 0250 part. 813 with or without integrated OPTICAL FIBRES - (N)TMFLCGEWÖU; H.V. reeling cable 6 to 20kV
