OMICRON Testing Solutions For Protection & Measurement Systems

11kV - 33kV HV High Voltage Substations



In addition to the classic protection tests, commissioning engineers have to verify correct operation of all status and interlocking elements in a substation. Typical other tasks that have to be performed are checking SCADA annunciations, burden measurement, CT/VT polarity checking, wiring checking, testing logic schemes, for example with event recording, plausibility check for CT/VT with primary injection.

OMICRON Testing Solutions for Protection and Measurement Systems

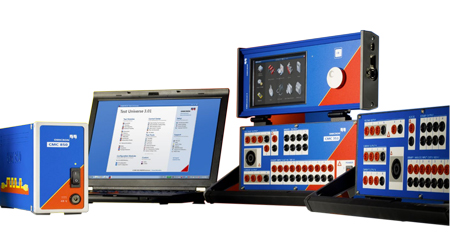

OMICRON's CMC test sets and the unique Test Universe Software are designed to ideally meet the demands of commissioning engineers.

Commissioning engineers are always under time pressure. Equipment availability is paramount to keeping time schedules. Test sets used for commissioning tasks must be extremely reliable and robust. It must be easy to handle, small and light-weight. It must provide perfect "ad hoc" and manual testing means, thus allowing fast reaction to constantly changing testing requirements and trouble-shooting. But also time-saving test automation for standard test procedures is a must in order to keep deadlines in time constrained environments.

OMICRON CMC Test Set Range
Product No. Description Image
OMICRON CMC 356

6 Phase Current + 4 Phase Voltage Test Set and Commissioning Tool

 PC or CMControl Operation

OMICRON CMC 356
OMICRON CMC 256plus

6 Phase Current + 4 Phase Voltage Test Set and Universal Calibrator

PC or CMControl Operation

OMICRON CMC 256plus
OMICRON CMC 353

3 Phase Current + 4 Phase Voltage Test Set and Commissioning Tool

PC or CMControl Operation

OMICRON CMC 353
OMICRON CMC 310

3 Phase Current + 3 Phase Voltage Test Set

CMControl Operation

OMICRON CMC 310
OMICRON CMC 850

IEC 61850 Test Set

PC Operation

OMICRON CMC 850
OMICRON CMS 356

6 Phase Current Amplifier + 4 Phase Voltage Amplifier

OMICRON CMS 356



OMICRON & PD

A partial discharge, or PD, is a localized dielectric breakdown of a small portion of the electrical insulation. PD can be initiated by voids, cracks, or inclusions within a solid dielectric, at interfaces within solid or liquid dielectrics, in bubbles within liquid dielectrics, or along the boundary between different insulation materials.
