115kV G&W Oil Filled Straight Joint

By Chris Dodds on 18th September, 2015

Follow @ThorneanDerrick

Cable Jointer : Steve Fielder

Location : Baltimore USA

Who is Steve?

"I have been working in the cable industry for 29 years. Originally trained at BICC Cables, went on to work in R&D and type approve cable systems ranging from 11kV up to 400kV oil, XLPE up to 500kV EPR cables and High Pressure Oil and Gas Pipe Type."

"I became more heavily involved in the High Pressure Pipe Type cable systems in North America working on a range of different projects from 115kV up to 345kV," Steve informs.

Who are G&W?

G&W Electric has been a global supplier of high voltage electric power equipment since 1905.

G&W Electrical products include EHV cable joints, cable terminations, overhead and underground distribution switches, Lazer® Automation solutions, reclosers, distribution and transmission cable accessories and current limiting system protection devices.

Unite jointer with joint and watch the magic unfold.....

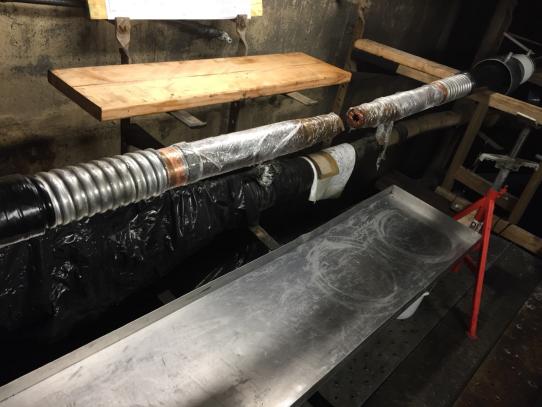

• 115kV Break Down - cable joint break down, ferrule cut out, ready to be re-made.

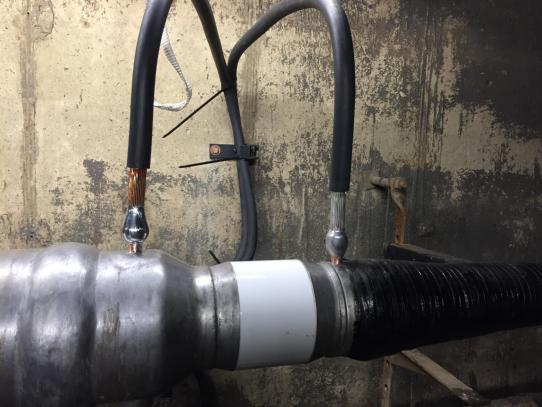

• Sweated Bonding - EHV jointing on insulated G&W remake

• Master Jointer - If jointing instruction is the sheet music, then joint is the instrument and the Maestro is Steve Fielder....

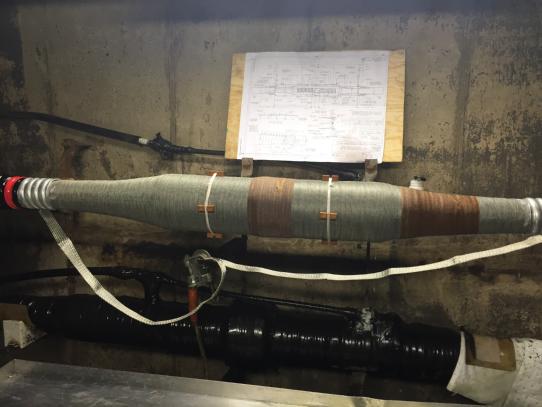

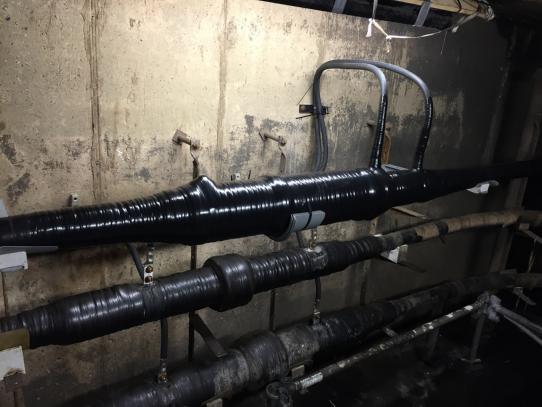

• Completed Cable Joint - 115kV G&W Oil Filled Straight Joint



• Further reading

345kV USI PPL HPPT Straight Joint - Boston USA

110kV G&W Cable Termination - HPFF High Pressure Fluid Filled

Masterclass - 400kV Low Pressure Oil Filled Prysmian Extended Ferrule Straight Cable Joint



G&W Cable Accessories for Extruded Dielectric Cable

Cable Splices and Cable Joints

G&W offers a variety of transmission cable accessories for extruded dielectric cable systems. Cable terminations are available for outdoor applications to 230kV and include porcelain or composite insulator options and premolded designs. Gas insulated substation designs are available to 230kV. Transition cable splices and cable joints are available to 138kV and include premolded designs. All cable terminations and cable joints incorporate built-in stress control and dielectric fluid. Dry type designs are also available for maximum ease of installation.
