NKT THV 145kV Non Self Supporting Cable Termination With Busbar Bypass Temporary Cable

By Chris Dodds on 11th March, 2016

Follow @ThorneanDerrick

Image Courtesy: Fredrik Pedersen - HV Cable Jointer / Supervisor

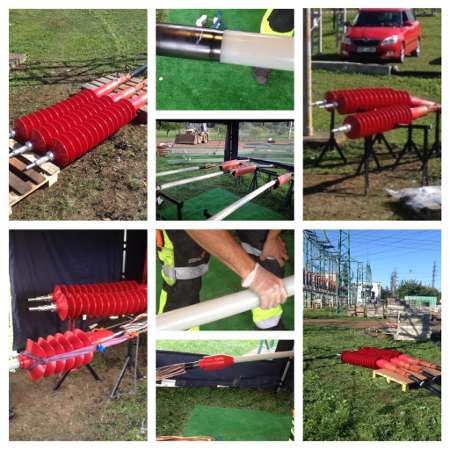

Pictured: NKT THV 145kV Non Self Supporting Cable Termination With Busbar Bypass Temporary Cable

NKT Joints & Terminations Overview

• Self-supporting outdoor cable terminations, porcelain or composite
• Non-self-supporting outdoor cable terminations, silicone
• Cable terminations for gas-insulated switchgears (GIS)
• Transformer terminations
• Straight-through cable joints
• Insulating joints/cross-bonding cable joints
• Transition cable joints, XLPE-insulated/oil-filled cables
• CabSnap® accessories for preassembled cable connection systems

• Further reading

​​130kV EHV XLPE Cable Pencilled Using Hivotec Peeling Tool

130kV Ericsson (NKT) Transition Cable Joint (EHV)​

155kV NKT GIS Cable Termination
