130kV Ericsson (NKT) Transition Cable Joint (EHV)

By Chris Dodds on 6th January, 2016

Follow @ThorneanDerrick

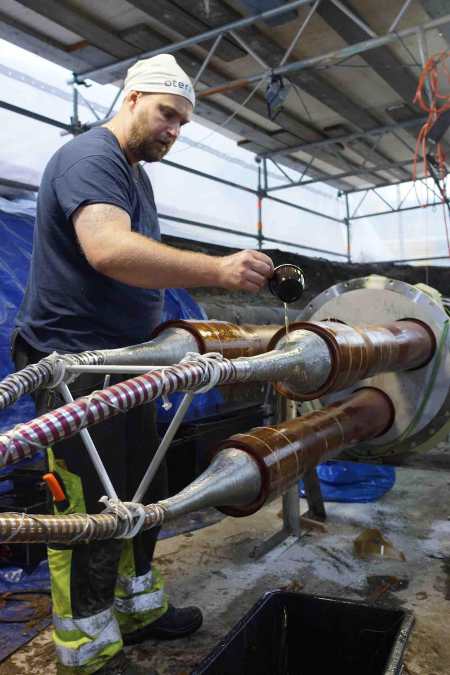

Image: Fredrik Pedersen - HV Cable Jointer / Supervisor at OTERA RATEL.

Pictured: 130kV Ericsson (NKT) Transition Cable Joint (EHV).



NKT Joints & Terminations Overview

• Self-supporting outdoor cable terminations, porcelain or composite
• Non-self-supporting outdoor cable terminations, silicone
• Cable terminations for gas-insulated switchgears (GIS)
• Transformer terminations
• Straight-through cable joints
• Insulating joints/cross-bonding cable joints
• Transition cable joints, XLPE-insulated/oil-filled cables
• CabSnap® accessories for preassembled cable connection systems

NKT Video : CityCables Project, St. Petersburg, Russia. Watch how NKT cables carried out installation/retrofitting of an existing high voltage 220kV oil-fitted cable system with a modern XLPE-insulated cable.
