Jointer Training Video : Nexans AFN20 24kV Slip-On Outdoor High Voltage Cable Terminations

By Chris Dodds on 10th November, 2015

Follow @ThorneanDerrick

Nexans AFN20.

Nexans Euromold High Voltage Heat Shrink & Cold Shrink Cable Terminations up to 33kV

Nexans AFN cable terminations are suitable for terminating medium and high voltage (MV-HV) power cables across voltage classes 10/11kV up to 33/36kV.

Nexans AFN20 cable termination sealing end is suitable for MV-HV power cables up to 24kV, 35-630sqmm cables - manufactured from silcone rubber and cold-fit applied.

Due to the high elasticity of the Nexans silicon rubber, the high voltage cable sealing end can cover diameter tolerances besides changes of diameters of the cables caused by alternation of load.

Under strong pollution and condensation the full insulating property persists. The conductor connection is done by hexagon crimp cable lugs. Other connector connection technology (like GPH screwable cable lugs) available on request.

See : GPH Nexans - Shear Off Bolt Cable Lugs & Cable Connectors

Special designs for motor terminal boxes are available as well.

Sealing ends with additional distribution caps can be supplied for 3-core cables.



Video : Nexans Euromold AFN20 - Outdoor Slip-On MV-HV Cable Termination

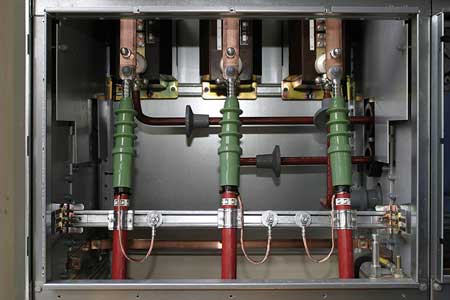

Pic : Nexans AFN20 - terminating high voltage power cables into switchgear.
