Nexans Euromold 430TB Separable Tee Shape Connectors Delivered to India

By Chris Dodds on 20th August, 2012

Follow @ThorneanDerrick

Nexans Euromold Connectors

Nexans Euromold 430TB Tee Connector 12kV-36kV 630 Amps





T&D Exports have supplied more Nexans connectors from UK stock, this time direct to Mumbai, India. A quantity of 12 sets of Nexans Euromold M430TB-27-95.240-14.5/VD MT connectors were delivered within 48 hours from Bristol to Mumbai.

Pictured: Nexans Euromold M430TB/G Tee Connectors 36kV 630Amps 50-240sqmm

T&D with the support of Nexans UK correctly advised and supplied the suitable Nexans connectors for terminating high voltage 3 core cables into on-site RMU's.

T&D Exports client, Jain Irrigation Systems Ltd, were delighted with the speed of service, delivery and technical support from T&D. Jain Irrigation Systems Ltd are an integrated player in global food system and leads in manufacturing of Micro Irrigation Systems, Plastic Pipes & Products, Agro Processed Products, Renewable Energy solutions, Tissue Culture Plants, Financial Services and other agricultural inputs since last several decades.

T&D are leading distributors for Nexans Power Cable Accessories with in-house technical support and direct support available from the Nexans UK Team.

Nexans separable tee shape connectors (bolted type) are designed to connect polymeric insulated cable to equipment and to connect cable to cable when using the appropriate mating parts.

Advantages of Nexans HV Cable Connector Systems

• No minimum distances required - suitable for compact HV substations
• Safe to touch accidentally when energised
• Maintenance free HV terminations
• Quick and easy to install by trained cable jointers
• Fully watertight cable terminations - IP67 ingress protection
• Complete cable connector ranges for 11kV to 33kV cable connections
• Suitable for outdoor cable termination without cable box

Nexans Euromold 430TB Interface C Tee Connector Characteristics

Construction Characteristics
Connector Shape	T-Shaped
Connector Type	Female
Technology	Slip-on
Conductor Material	Copper or Aluminium
Dimensional Characteristics
Conductor Cross-Section Range	35...300mm²
Electrical Characteristics
Rated Voltage Uo/U (Um)	19 / 33 (36) kV
Max Partial Discharge at 2Uo	10pC
Dielectric Withstand Voltage 50Hz 1mn Impulse Voltage	85.5kV 194kV
Usage Characteristics
Interface	C (630A - 1250A)

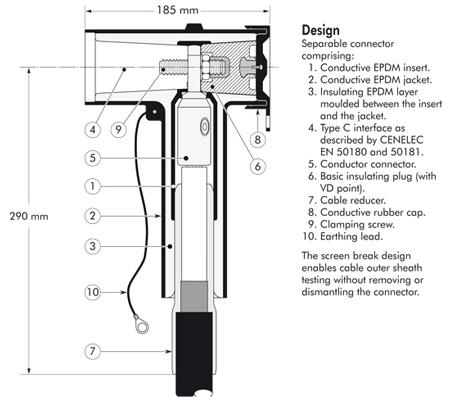

Pictured: Nexans 430TB Separable Tee Connector Design

Nexans Euromold 430TB Separable Interface C Tee Connector Data

Separable Connector Type	Voltage Um	Current Ir	Current Ir	Conductor sizes
				Min	Max
Nexans Euromold 430TB/G	12kV	630A	1250A	35mm²	300mm²
Nexans Euromold K430TB/G	24kV	630A	1250A	35mm²	300mm²
Nexans Euromold M430TB/G	36kV	630A	1250A	50mm²	300mm²

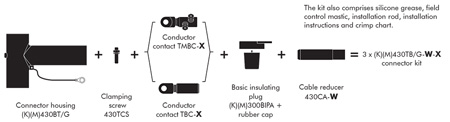

Pictured: Nexans 430TB Separable Tee Connector Design Kit Contents



Case Study: Jain Irrigation Systems, Part Excerpt Courtesy of Financial Times, October 14, 2010 4:30pm

New irrigation systems, part of broader water resources development projects, are essential for food production and sustainable growth.

According to the UN Food and Agriculture Organization, agricultural use of water for irrigation is contingent on land resources.

In developing countries, irrigated agriculture plays a vital role in contributing to domestic food security and poverty alleviation. However, a looming water crisis across the world is forcing researchers to find ways to reduce usage.

As agriculture accounts for 70 per cent of water consumption, a number of companies have been set up with the aim of reducing the amount of water and fertiliser used in food cultivation and developing less thirsty agricultural practices.

Jain Irrigation Systems (Jains), a family-run Indian business with 6,500 employees, claims to have a deep-rooted concern for nature. “Each product is an outcome of an effort to conserve nature’s precious resources through substitution or value addition”, it says.

Jains is a public company listed on the Bombay Stock Exchange and on the National Stock Exchange of India.

Anil Jain, managing director, says: “In the early 1960s, the company’s core business was agriculture. In 1980, it started making PVC pipes.

The need and the potential increased for a sophisticated and efficient irrigation system for Indian farmers. Soon after, we pioneered and set up the first manufacturing unit for micro-irrigation.”

The world’s second-largest micro irrigation company, after Israel’s Netafim, Jains makes a number of products for irrigation and piping, as well as plastic sheets, dehydrated fruit purée and juice concentrates.

Micro irrigation systems (MISs) are Jains’ biggest growth area. They have also been the largest revenue contributor, accounting for an increase of total consolidated income from 51.7 per cent in 2009 to 54.1 per cent in 2010.

MISs, which include drip systems, sprinklers, valves, water filters and plant tissue products, help use water effectively and enhance the productivity of seeds and fertiliser.

Income comes mainly from India, where in 2010 the company has recorded an increase of 5.4 per cent (65.3 per cent in 2010, as opposed to 59.9 per cent in 2009).

The remainder is equally distributed among Europe (11.9 per cent), North America (11.4 per cent) and the “Rest of World” (11.5 per cent). On March 31, it recorded a total income of Rs34,200m ($772.8m) and market capitalisation of Rs72,864m ($1.6bn).

In the recent past, to strengthen its MISs portfolio, the company has completed several overseas acquisitions, including Israel’s NaanDan, the world’s fifth-largest micro-irrigation company.

It also bought Thomas Machines, a Swiss specialist in drip irrigation lines.

“The company plans to enhance its distribution by adding new dealers and distributors to penetrate new markets, particularly in Africa, the Middle East and the east and west coasts of the US”, says Mr Jain.

Water will be a critical factor in the entire world’s sustainable growth, especially for a fast developing country such as India.

Accordingly, Jains has also undertaken a number of initiatives to conserve, reduce, recycle and harvest water.

“We are also exploring the market development and commercial viability of solar water pumps. Such pumps would enable farmers in power-deficit states or villages to improve farm productivity by using micro irrigation. The life of these solar pumps is about 20 years”, states Mr Jain.
