Jointer Training Video : Nexans AFNP36 33kV Slip-On Outdoor High Voltage Cable Terminations

By Chris Dodds on 10th November, 2015

Follow @ThorneanDerrick

Nexans AFNP36.

Nexans Euromold High Voltage Heat Shrink & Cold Shrink Cable Terminations up to 33kV.

Nexans Slip-On Outdoor High Voltage Cable Terminations AFNP-36 are suitable for terminating 33kV-36kV single core power cables 50-630sqmm.

P type Nexans Slip-On cable terminations are specified for heavily polluted areas (cable terminations feature increased creepage length).

Nexans Slip-On Outdoor High Voltage Cable Terminations are suitable for terminating 11kV, 15kV, 17kV, 24kV, 33kV and 42kV single core power cables - outdoor cable terminations for high voltage power cables connect polymeric insulated cable to outdoor overlines or busbars.



Video : Nexans AFNP36 33kV Slip-On Outdoor High Voltage Cable Terminations

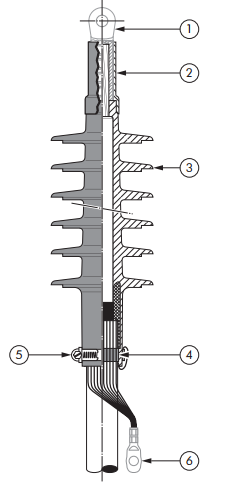

Nexans AFN36 : 33kV Outdoor Cable Termination - Specification

1. Cable lug (not included in the standard kit)

2. Water sealing silicone sleeve

3. Silicone housing with sheds and integrated conductive silicone rubber insert providing stress relief for the cable

4. Water sealing mastic

5. Earthing clamp

6. Earthing lug (not included in the standard kit)

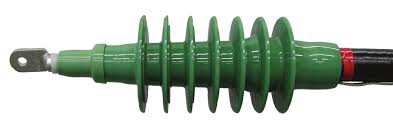

A kit of 3 Nexans 33kV cable terminations for use outdoors and exposed to prolonged sunshine (UV) and other weather conditions.
