Nexans AFN 33kV Substation Cable Termination With GPH Mechanical Shearbolt Lugs

By Chris Dodds on 22nd January, 2016

Follow @ThorneanDerrick

Image: Phil Elliott Chief Executive Officer at Cuthbert Stewart Ltd

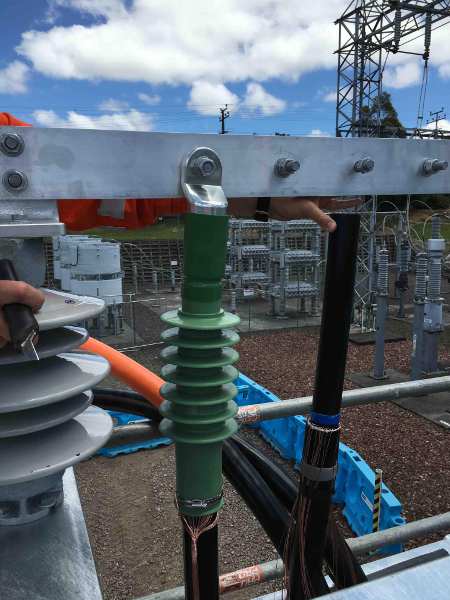

Pictured: Nexans AFN 33kV Substation Cable Termination With GPH Mechanical Shearbolt Lugs

Kristof Rottiers (Technical Manager at Australmold a Nexans company) commented, "this type of installation is common in New Zealand. The Nexans AFN-series is the preferred technology due to its harsh climate and closeness to the coast line."

Nexans AFN 10/AFN 20/AFN 30/AFN 36 outdoor slip-on cold applied cable terminations are tested to international standard HD 629.1 S2 providing exceptional service and reliability in heavily polluted and condensation locations.





• Further reading

Nexans Euromold 11kV Tee Connectors Terminating EPR & XLPE Cables Into Siemens Transformers

Nexans GPH 33kV Medium Voltage Cable Connectors & Lugs (800-1200sqmm)
