MV Raychem Transition Cable Splice In Manhole (300 MCM PILC To 350 MCM EPR)

By Chris Dodds on 5th February, 2016

Follow @ThorneanDerrick

Image: Scott Atkins - Sr. Cable Splicer at Georgia Power Company.

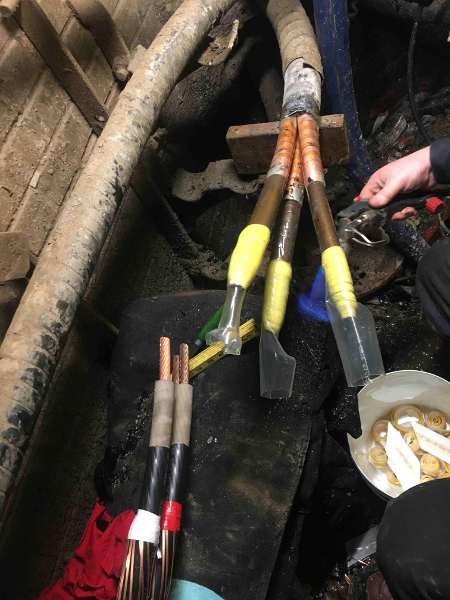

Pictured: MV Transition Cable Splice In Manhole (300 MCM PILC To 350 MCM EPR).

The stress relief mastic is used as an oil stop in this Raychem cable splice - it is also applied over the conductor connectors, 1/4" onto EPR cable insulation and 1" onto the oil barrier tubes (clear heat shrink) on the lead side of cable splice.
