MCT Brattberg Cable Transit Sealing Systems For Solihull Hospital New Generator Project

By Chris Dodds on 9th July, 2013

Follow @ThorneanDerrick

MCT Cable Transits - Seal Cables Against Fire, Gas, Smoke & Water.

T&D working with SSE Contracting have supplied 9 MCT Brattberg Cable Transit Frames to provide fire protection to LV-HV cables entering and leaving switchrooms and transformer rooms at Solihull Hospital.

View our flickr photo set courtesy of MCT Brattberg.

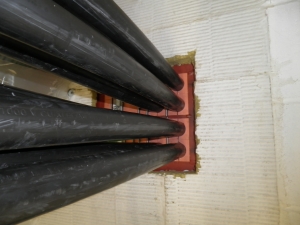

The special customised Cable Transit Frames are being manufactured by MCT Brattberg from galvanised mild steel - MCT Brattberg RGB Cable Transit Frames are to be supplied with custom made busbar blocks to provide a fire rated cable transit seal. MCT Brattberg Cable Transit System seals cables against, fire, gas, smoke and water and also functions as a cable management system.

MCT Brattberg specialise in “Putting Safety First” and offer their clients and customers, confidence and peace of mind.

The cable sealing project required a total of 9 cable transit frames each sealing various LV-HV power and LV control cables entering the switchrooms and transformer rooms.

MCT Brattberg Cable Transits - Cable Sealing Project Scope....

Fire Gland Schedule For Solihull Hospital New Generators

1. EP3 (LV Switchroom) to EP1 (Transformer Room) Cable Transit

a. 8 off Cables 61mm OD

b. 4 off Cables 27mm OD

Note: Restricted hole width of 550mm wide

2. EP1 (Transformer Room) to EP2 (HV Room) Cable Transit

a. 8 off Cables 61mm OD

b. 4 off Cables 27mm OD

Note: Restricted hole width of 500mm wide

3. EP2 (HV Room to EP4 (ABB Switchroom) Cable Transit

a. 8 off Cables 61mm OD

b. 4 off Cables 27mm OD

Note: Restricted hole width of 380mm wide

4. New Switchroom to Tunnel (Busbar 1) Cable Transit

a. Busbar 104mm x 200mm

5. New Switchroom to Tunnel (Busbar 2) Cable Transit

a. Busbar 104mm x 200mm

6. New Switchroom to Tunnel (Control Cables) Cable Transit

a. 1 off Cable 27mm OD

b. 4 off Cables 30mm OD

c. 2 off Cables 15mm OD

7. New Switchroom to EP1 (Transformer Room) Cable Transit

a. 14 off Cables 32mm OD

b. 4 off Cables 27mm OD

c. 14 off Cables 43mm OD

8. New Switchroom & EP3 (LV Switchroom) Cable Transit

a. 4 off Cables 61m OD

b. 2 off Cables 27mm OD

9. Tunnel & New Generator Room Cable Transit

a. 2 off Busbars 104mm x 200mm

b. 1 off Cable 27mm OD

c. 4 off Cables 30mm OD

d. 2 off Cables 15mm OD
