Marechal DSN Compact & Watertight Decontactor Plug & Socket-Outlets

By Chris Dodds on 22nd August, 2012

Follow @ThorneanDerrick

Marechal Plugs & Sockets

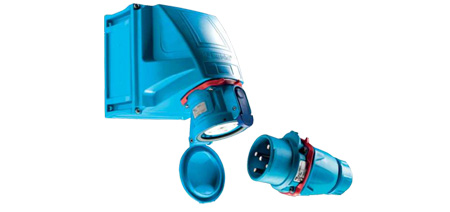

Marechal DSN Compact & Watertight Decontactor 20A / 32A / 63A

Marechal DSN decontactors have a 63A plug which is only 83mm, making it highly compact.

Marechal DSN plugs and sockets with integral load-break switching capability complying with IEC EN 60309-1 and IEC EN 60309-4 standards.

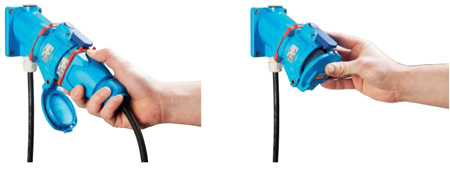

Once connected, the DSN plug and socket is automatically IP66/IP67, the socket-outlet is also IP66/IP67 when the lid is closed.

The sealing IP66/IP67 (water jet and temporary immersion) is provided automatically without additional operation. Marechal DSN decontactors are the ideal product for the food industry.

Marechal DSN Compact & Watertight Decontactors Technical Features

Product No	Marechal DSN1	Marechal DSN3	Marechal DSN6
Rated Current In	20A	32A	63A
U Max	500V	690V	1000V
AC-22 Switching Capability	20A / 500V	32A / 690V	63A / 690V
AC-23 Switching Capacity	20A / 400V	32A / 400V	63A / 400V
Keying Positions	24	24	24
Ambient Temperature	-40°C to +60°C	-40°C to +60°C	-40°C to +60°C
Short Circuit Current Icc	10kA	10kA	10kA
