Marechal DN Robust Decontactors - Metal Bodied Plug And Socket-Outlet

By Chris Dodds on 22nd August, 2012

Follow @ThorneanDerrick

Marechal Industrial Plugs & Sockets

Marechal DN Plug and Sockets - 20A / 30A / 50A / 90A / 150A

The first industrial plug and socket-outlet equipped with an integral switching device, Marechal DN is still the perfect heavy-duty solution for low voltage power distribution.

The Marechal DN family of decontactors cover ratings from 30 to 150 A (ratings specified by IEC 60309-1).

Marechal DN plugs and sockets offer safety and reliability in heavy duty environments. The metal casings and accessories are anti-corrosion treated.

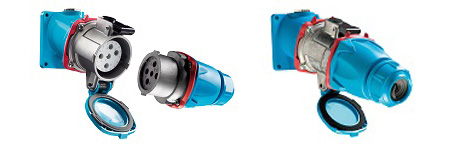

Marechal DN decontactors are metal-bodied plugs and socket-outlets with integral switching device AC-22, silver-nickel butt contacts with metallic braid which comply with BECMA international standard.

Marechal DN Plugs & Sockets Main Features

• Automatic IP54/IP55 Water And Dust Tight
• Impact Resistant Metal Casing
• Suitable For Heavy Industry

Marechal DN Decontactor Technical Specifications

Product No.	Marechal DN8	Marechal DN1	Marechal DN3	Marechal DN6	Marechal DN9
Rated Current In	20A	30A	50A	90A	150A
U max	500V	500V	500V	500V	415V
AC-22 Switching Capacity	20A / 400V	30A / 400V	50A / 400V	90A / 400V	150A / 400V
Keying Positions	16	16	16	16	4
Ambient Temperature	-40°C to +60°C	-40°C to +60°C	-40°C to +60°C	-40°C to +60°C	-40°C to +60°C
