Marechal DB Disconnectable Motor Switches

By Chris Dodds on 20th August, 2012

Follow @ThorneanDerrick

Marechal Plugs, Sockets & Motor Switches

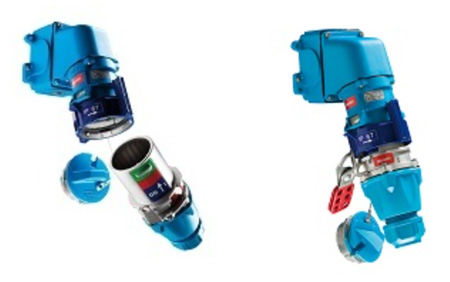

Marechal DB Motor Switches

Marechal DB disconnectable motor switches combine the functions of switch-engine cutoff switch and plug and socket-outlet.

The motor switches guarantee the safety of persons during an operation on the load (motor load or highly inductive).

Marechal DB Disconnectable Motor Switches Specifications

Part No.	Rated Current	Max Voltage	IP Protection	Shock Resist-ance	Ambient Temper-ature	Flexible Wiring	Solid / Stranded Wiring
Marechal DB3	40A	690V	IP66/IP67	IK09	-40°C to +60°C	2.5mm² - 6mm²	2.5mm² - 10mm²
Marechal DB6	75A	690V	IP66/IP67	IK09	-40°C to +60°C	10mm² - 25mm²	16mm² - 35mm²
Marechal DB9	125A	690V	IP66/IP67	IK09	-40°C to +60°C	16mm² - 50mm²	25mm² - 70mm²
