Managing Risk & Performance Of Electrical Assets Just Got Easier!

By Chris Dodds on 6th April, 2015

Follow @ThorneanDerrick

With the launch of a new hand-held instrument, a big step forward has been taken to understand and interpret the measurement of Partial Discharge (PD), a major cause of failure in High Voltage (HV) Electrical Assets.

Partial Discharge occurs in and around the insulation material on HV equipment such as cables and switchgear.

The discharge is caused by gaps, voids, contamination and defects in the insulation and this is where small “arcs” take place.

Once this process starts, it only increases and can lead flashover and failures, so being able to detect partial discharge as early as possible has major safety, financial and security of supply benefits.

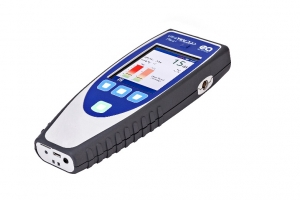

Unlike measuring Volts and Amps, PD measurements can be difficult due to the sensitivity of the measurement and environmental conditions out in the field. The UltraTEV Plus2 has been designed based on feedback from electrical engineers around the world and the result is a major break-through for the use of hand-held PD instruments:

Interpretation: The UltraTEV Plus2 tells the operator if the measurements are real PD or if it’s noise or interference: it sounds simple but it takes lots of experience to have the confidence to make these decisions.

Data Capture and Management: The UltraTEV Plus2 can capture measurements and transfer them via Wi-Fi, meaning inspection staff can record data and move on to the next job. All the information is then available for PD and Asset Management experts to analyse the results; making comparisons, looking for trends and integrating the information into corporate Asset Management systems.

Functionality: PD measurement on cables is now possible with the UltraTEV Plus2, also new analytical tools allow greater ability to interpret more complex results.

The UltraTEV Plus2 is the latest generation of PD instruments developed by EA Technology, a global, independent provider of end to end power engineering solutions with a long heritage of Asset Management, condition assessment and failure investigation.

Brian Matthews, senior asset engineer and member of the Partial Discharge User Group, said:  “After assessing the new instrument we have found the new analytical tools such as the phase resolved plots very helpful in identifying genuine Partial Discharge”.

Anne McIntosh, Director HV 5-9s, EA Technology, says:  “EA Technology has listened to our customers around the world; they asked for better understanding of the results, better ways to record and manage the information and for increased functionality. The UltraTEV Plus2 meets these challenges; accurate condition information can be easily measured and better decisions made to improve the reliability and safety of electrical networks”.



About UltraTEV Products

EA Technology has won 2 Queens Awards for Enterprise: Innovation for its UltraTEV Instrumentation product range 2007 & 2011.

The ability to measure very small signals that indicate the deterioration of electrical insulation materials is extremely important as it provides early warning of potential asset failures that have high safety and financial consequences, as well managing the security of energy supply.

For more information, visit http://www.eatechnology.com/products-and-services



About EA Technology

EA Technology is a global, independent provider of end-to-end power engineering solutions, supporting customers in managing and operating electrical assets more efficiently, reliably and safely at lower cost.

Established as the UK Electricity Industry’s Research Centre in the 1960s and now employee-owned, EA Technology is recognised as a world-leading expert in its field, working collaboratively with partners across the energy, utilities, infrastructure and associated sectors.

Headquartered in the UK, EA Technology now has offices in Australia, China, Singapore, UAE and USA, delivering value to clients in over 80 countries.

EA Technology provides innovative instruments, skills training, technical services and expert consultancy, designed to help customers maximise existing asset performance, enhancing power engineering at all stages of the asset lifecycle, and developing ground-breaking, sustainable solutions for the energy networks of tomorrow.
