LV Switchboard Terminated - 56 x Leoni Solar ALU-ATA Cables Labelled & Terminated

By Chris Dodds on 4th November, 2016

Follow @ThorneanDerrick

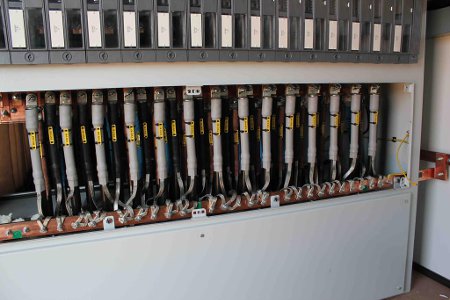

Pictured: LV Switchboard Terminated - 56 x Leoni Solar ALU-ATA Cables Labelled & Terminated

Image: Steve Ford Managing Director at Land and Power Electrical Contracting Ltd

The insulating shelves are purely being used for phase identification of the conductors, and were applied Cembre marking genius labels. The earth braids are part of a Nexans solderless earthing kit grounding the Aluminum screens and Pfisterer mechanical shearoff life where also used.
