33kV Euromold (Nexans) Connectors Terminating XLPE Cables Into Siemens Switchgear

By Chris Dodds on 5th February, 2016

Follow @ThorneanDerrick

Image: Jeremy Hunt - HV & LV Engineering at Inter-Lect (UK) Ltd.

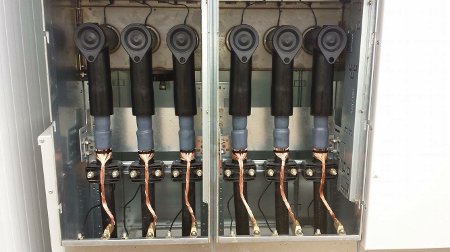

Pictured: 33kV Euromold (Nexans) Connectors Terminating XLPE Cables Into Siemens Switchgear - the 33kV XLPE power cable was prepared using Boddingtons Cable Jointing Tools ; this includes peeling bonded semi-conductive screen, insulation removal and chamfering and cable sheath stripping tools.

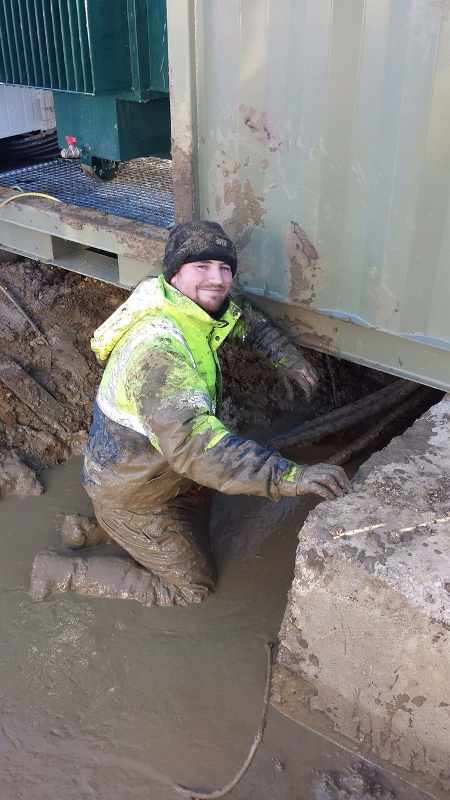

Impressive workmanship given the extremely challenging working conditions.

T&D are Main Distributors for the complete range of Nexans Euromold Connectors, Joints and Terminations for medium voltage cables utilising EPDM rubber, cold-shrink, push-on and heat shrink technologies.



• Further reading

Nexans AFN 33kV Substation Cable Termination With GPH Mechanical Shearbolt Lugs

Nexans Euromold 11kV Tee Connectors Terminating EPR & XLPE Cables Into Siemens Transformers

Nexans Euromold Cable Connectors Terminating 11kV Cables Into Siemens NXPLUS GIS Switchgear
