ABB Kabeldon Cable Distribution Cabinets

Electrical Enclosures & Feeder Pillars

Cable Distribution Cabinets For Utilities & Network Owners



T&D distribute a wide range of sturdy and versatile ABB Kabeldon electrical enclosures and distribution feeder pillars for a variety of outdoor and indoor applications.

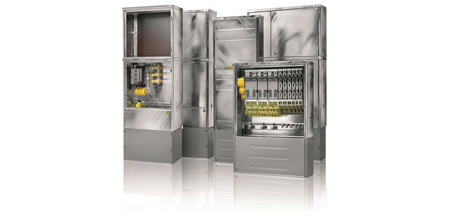

ABB Kabeldon Cable Distribution Cabinets are sustainable and fit well into most environments. The cabinets are available in various designs and sizes. Kabeldon CDC range also satisfy current requirements for long life with undiminished safety and low operating and maintenance costs.

ABB Kabeldon CDC and SDC enclosure series are made of sheet steel and are protected against corrosion by hot-dip galvanizing according to ISO 1461. For parts of the enclosures that are buried in the ground, the corrosion protection has been reinforced with a polymer coating which has undergone zinc/manganese phosphating.



Benefits	Robust and versatile enclosures for a variety of applications Hot-dip galvanizing gives great resistance to corrosion Designed to be easily fitted in different installation environments Parts in the excavated area are extra protected against corrosion Modular system makes planning easy Degree of protection IP34D
Applications	Utilities Buildings Ports and airports Sports installations Construction sites Industry Communication systems (enclosures)

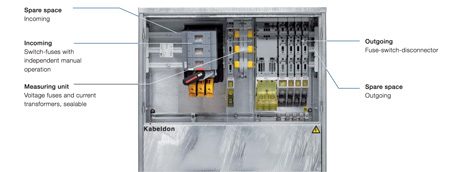

Pictured: ABB Kabeldon Distribution Board With kWh Metering



Standards for Electrical Enclosures

Electrical enclosure series ABB Kabeldon CDC and SDC are made of hot-dip galvanized sheet steel according to standards: ISO 1461, IEC 60439-1, IEC 60439-5 (passes Arctic climate tests). ABB Kabeldon KSIK electrical enclosures are powder coated steel enclosures for indoor use in environments classed C1 and C2 to ISO 12944-2.

Protection for Electrical Enclosures

The degree of ingress protection is IP34D, in accordance with the requirements of IEC 60439-5.

Foundation

In the ABB Kabeldon CDC range, the ground foundation is an integral part of the design. Separate foundations for ground, floor or wall mounting are available for the ABB Kabeldon SDC range. All below-ground parts have heavy-duty corrosion protection. ABB Kabeldon KSIK electrical enclosures are for wall mounting only (indoors).

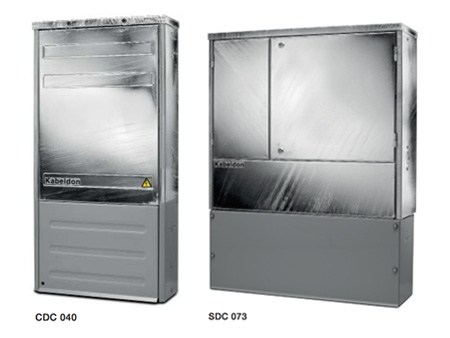

Pictured: ABB Kabeldon CDC & SDC Hot-Dip Galvanized Enclosures

ABB Kabeldon CDC/SDC Hot-Dip Galvanized Enclosures Specifications

Product No	Equipment Included	Number Of Modules	Rated Current	Dimensions			Weight
		M*		Height	Width	Depth
ABB CDC 020	Mounting Plate	-	-	1200mm	350mm	220mm	36kg/pcs
ABB CDC 040	Mounting Plate	-	-	1200mm	600mm	220mm	50kg/pcs
ABB CDC 060	Mounting Plate	-	-	1200mm	850mm	220mm	64kg/pcs
ABB CDC 420	Busbar System	20	400A	1200mm	350mm	220mm	34kg/pcs
ABB CDC 440	Busbar System	40	400A	1200mm	600mm	220mm	47kg/pcs
ABB CDC 460	Busbar System	60	400A	1200mm	850mm	220mm	59kg/pcs
ABB CDC 640	Busbar System	40	630A	1200mm	600mm	220mm	48kg/pcs
ABB CDC 660​	Busbar System	60	630A	1200mm	850mm	220mm	60kg/pcs
ABB SDC 048	-	-	-	895mm	682mm	312mm	46kg/pcs
ABB SDC 073	-	-	-	895mm	996mm	312mm	58kg/pcs
ABB SDC 098	-	-	-	895mm	1310mm	312mm	70kg/pcs
ABB SDC 448	Busbar System	48	400A	895mm	682mm	312mm	48kg/pcs
ABB SDC 473	Busbar System	73	400A	895mm	996mm	312mm	60kg/pcs
ABB SDC 648	Busbar System	48	630A	895mm	682mm	312mm	49kg/pcs
ABB SDC 673	Busbar System	73	630A	895mm	996mm	312mm	62kg/pcs
ABB SDC 698​	Busbar System	98	630A	895mm	1310mm	312mm	75kg/pcs
ABB SDC 1048	Busbar System	48	1000A	895mm	682mm	312mm	50kg/pcs
ABB SDC 1073	Busbar System	73	1000A	895mm	996mm	312mm	63kg/pcs
ABB SDC 1098	Busbar System	48	1000A	895mm	1310mm	312mm	76kg/pcs
ABB SDC 673 LD	Busbar System	73	630A	895mm	996mm	242mm	59kg/pcs
ABB SDC 698 LD	Busbar System	98	630A	895mm	1310mm	242mm	73kg/pcs

* One module M = 12.5mm

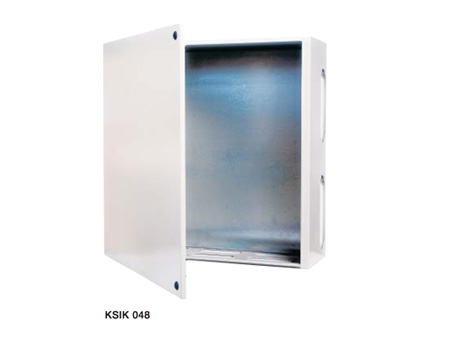

Pictured: ABB Kabeldon KSIK Powder Coated Enclosures For Indoor Use

ABB Kabeldon KSIK Powder Coated Enclosures Specifications

Product No	Qty Flange Openings FL 21 In The Base Plate	Number Of Modules	Dimensions			Weight
		M*	Height	Width	Depth
ABB KSIK 043	4	43	900mm	655mm	325mm	42kg/pcs
ABB KSIK 063	6	63	900mm	895mm	325mm	57kg/pcs
ABB KSIK 098	10	98	900mm	1350mm	325mm	75kg/pcs

* One module M = 12.5mm



Pictured: ABB CDCM Hot-Dip Galvanized Enclosures With Upper Section



ABB Kabeldon CDCM Hot-Dip Galvanized Enclosures Specifications

Product No	Equip-ment Included	Space For Meter Panels MPF 25 / MPF63	Number Of Modules	Rated Current	Dimensions			Weight
			M*		Height	Width	Depth
ABB CDCM 020	Mounting Plate	1	-	-	1800 mm	350 mm	220 mm	36 kg/pcs
ABB CDCM 040	Mounting Plate	2	-	-	1800 mm	600 mm	220 mm	50 kg/pcs
ABB CDCM 420	Busbar System	1	20	400A	1800 mm	850 mm	220 mm	64 kg/pcs
ABB CDCM 440	Busbar System	2	40	400A	1800 mm	350 mm	220 mm	34 kg/pcs
ABB CDCM 640	Busbar System	2	40	630A	1800 mm	600 mm	220 mm	47 kg/pcs

* One module M = 12.5mm
