Cable Jointing LV Unarmoured Cables with 3M Scotchcast 91-NBA Joint Kits

By Chris Dodds on 18th September, 2012

Follow @ThorneanDerrick

3M Resin Cable Joints​

3M Scotchcast Inline Cable Joints 91-NBA with 470W Resin



3M Scotchcast resin cable joint kits 91-NBA are designed to be used for cable jointing low voltage LV unarmoured single core and multi-core (2, 3, 4 and 5 core) cables. 3M Scotchcast resin cable joints incorporate electrical insulation and mechanical protection of unarmoured cable joints with compression or mechanical connectors.



3M Scotchcast unarmoured cable joints can be used for indoor and outdoor, underground and submerged applications. The resin cable joints are designed with a one part body construction which has a unique top seal and fixing clips. This provides a simple installation - no need for extra taping and less chance of resin leakage.

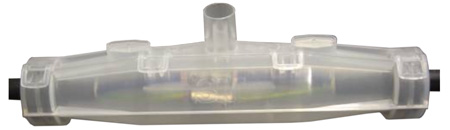

3M 91-NBA Inline Joint Kit Series with Resin

Features	3M Scotchcast resin 470W in transparent two chamber bags with integrated 3M Closed Mixing and Pouring (CMP) cable jointing system One part translucent cable joint mould body with snap fit closing system for quick and easy handling by the LV cable jointers Pre cut foam sealing elements to provide reliable sealing to the cable joint mould body without tooling for all cable application diameters Closure cap to prevent any pollution

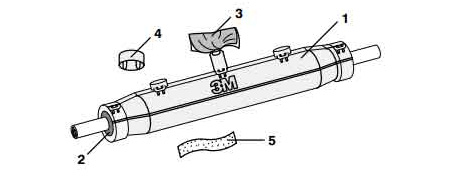

Kit Content	Translucent mould body with closure cap ScotchcastTM 470W resin bag with CMP Pre-cut sealing elements Abrasive strip Detailed instruction
3M 91-NBA Inline Joint Kit Series Range	3M 91-NBA0 Inline Joint Kit Series with Resin 3M 91-NBA1 Inline Joint Kit Series with Resin 3M 91-NBA2 Inline Joint Kit Series with Resin 3M 91-NBA3 Inline Joint Kit Series with Resin 3M 91-NBA4 Inline Joint Kit Series with Resin 3M 91-NBA5 Inline Joint Kit Series with Resin 3M 91-NBA6 Inline Joint Kit Series with Resin 3M 91-NBA7 Inline Joint Kit Series with Resin





Unarmoured Cable Jointing Kits for Low Voltage LV Cables
