3M Cold Shrink Cable Joints & Scotchcast Resin Supplied To BP Exploration (Caspian Sea) Ltd

Cable Jointing & Terminating 11kV

3M Cold Shrink Cable Joints

3M Scotchcast Resin



T&D have supplied BP Exploration (Caspian Sea) Ltd with 3M Cold Shrink Joints 11kV via their UK preferred Electrical Bulk Equipment Supplier.

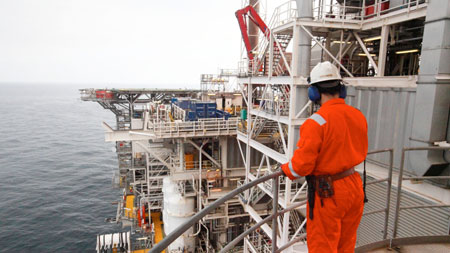

Pictured: BP Exploration (Caspian Sea) Limited, Azerbaijan

BP Exploration (Caspian Sea) Ltd Azerbaijan

Working with BP Principal Electrical Engineer, Thorne & Derrick specified 3M 11kV Cold Shrink Cable Joint Kits 92-AV620-3 encapsulated with hydro-carbon resistant 1402FR Scotchcast resin for the HV cable jointing of 11kV 3 core 185sqmm XLPE cables.

3M Cold Shrink cable joints were accepted as they require no "hot-working" for installation in hazardous areas and potentially explosive atmospheres. The cable joints were installed in cable trenches (directly buried) in highly contaminated soils.

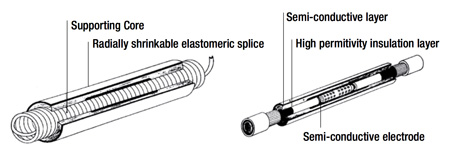

Pictured: 3M Medium Voltage Cold Shrink Cable joints 6.6kV 11kV (12)kV

3M Medium Voltage Cold Shrink Cable joints 6.6kV 11kV (12)kV

3M QS1000 cable joints are a one-piece cold shrink joint body, made from a specially formulated silicone material. This material provides flexibility, easy installation at low temperatures and superior electrical performance over a wide range of operating temperatures.

3M QS1000 (92-AV620-3) Cold Shrink Cable Joint Features

  • One part joint body
  • 100% tested after manufacture
  • No heat required
  • Tool free installation
  • Permanent radial pressure
  • Suitable for paper and polymeric cables
  • Compatible with compression and mechanical connectors
  • Low temperature installation
  • Provides consistent installation quality



3M QS1000 92-AV Series Cold Shrink Three Core Inline Joint Data
Cable Joint

Application Range CSA

Diameter Over Primary Insulation

Supplementary Kit for Transition Joint

3M 92-AV 610-3

50mm² - 120mm²

17.7mm - 26.0mm

PILCL1

3M 92-AV 620-3

150mm² - 185mm²

22.3mm - 33.2mm

PILCL2

3M 92-AV 630-3

300mm² - 400mm²

28.4mm - 42.0mm

PILCL3

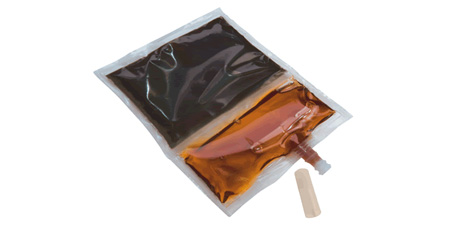

Pictured: 3M Scotchcast 1402FR Insulating Resin

3M Scotchcast 1402FR Insulating Resin

3M Scotchcast 1402FR hazard area resins is a halogen free, flame retardant resin which provides long term resistance against most hydrocarbons and are suitable for areas where there is a danger of gas, oil, sewage or chemical spillage including Zones 1 & Zones 2 hazardous areas.

3M 1402FR resin is suitable for electrical insulation and mechanical protection of low and medium voltage electrical joints installed for indoor and outdoor, underground and submerged applications.

3M Scotchcast 1402FR Hazard Area Resin Specificatons

 Type

 Polyetherurethane

 Form

 2 Part

 Density

 1.6 g/cm³

 Viscosity at 23°C

 2.5 Pas

 Hardness

 75 Shore D

 Elongation at break

 2%

 Pot life at 23°C

 20 min

 Dielectric strength

 20 kV/mm

 Exotherme Reaction - Temp 40°C

 65°C



T&D UK hold the largest volume stocks of 3M Cold Shrink Cable Joints and Cable Terminations for 11kV cable networks.
