Alroc Semi-Conductive Screen Removal Cable Preparation Tools

By Chris Dodds on 18th February, 2013

Follow us on LinkedIn

Alroc Semi-Conductive Screen Removal Cable Preparation Tools



Alroc Screen Scoring Tools

Alroc Semi- Conductive Screen Removers



Damage to the insulation during semi-conductive screen removal - this is probably the number one cause of all cable joint and cable termination failures. Care must be taken when cable jointers are removing the semi-conductive screen, any damage or nick to the cable insulation at this stage will result in creating an unscreened air void.

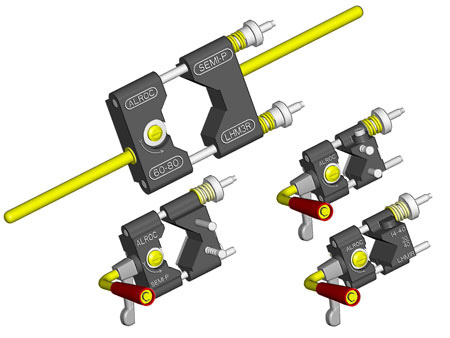

Pictured: Alroc Peelable Semi-Conductor Screen Removal Tools

Pictured: Alroc 8YR0-LHM Peelable Semi-Conductor Screen Removal Tools

Since the dielectric strength of air is less than that of the XLPE insulation, the concentration of electrical stress in this area will exceed the dielectric strength of air. The air will ionize causing corona discharge to occur. These discharges bombard the surrounding insulation 100 times a second, and will result in cutting through the insulation and ultimate high voltage power cable failure.


Alroc Cable Preparation Tools
High Voltage Preparation Tools

Semi-conductive layer scraping

Outer sheath/jacket stripping

Cable screen grounding

Semi-conductor shaving tool

Primary insulation stripping

Groove insulation making

Beveling & chamfering cable insulation

High Voltage Preparation Tools
Medium Voltage Preparation Tools

Sheath abrasion

Outer sheath/jacket stripping

Cable screen grounding

Semi conductor scoring

Bonded semi-conductor shaving tool

Primary insulation stripping

Beveling & chamfering cable insulation

Medium Voltage Preparation Tools
Low Voltage Preparation Tools

Outer sheath stripping

Jacket removal

Mid-span stripper

1000V cable stripper

Live working pliers

Insulated cable jacket stripping

Low Voltage Preparation Tools
