Nexans High Voltage Leads Pre-Terminated for HV up to 52kV

By Chris Dodds on 4th October, 2012

Follow us on LinkedIn

Nexans High Voltage Leads Pre-Terminated for HV up to 52kV

Nexans Medium Voltage To High Voltage Cable Leads 33kV - 52kV

Nexans Euromold Test Leads For Separable Connectors & Bushings



T&D and Nexans Power Accessories are able to provide pre-terminated leads for MV applications up to 52 kV. This saves time and money on site and provides a reliable solution.

We have extensive knowledge of both cable terminations and medium and high cables which enables us to provide single core XLPE and highly flexible cable solutions utilising our Inner and Outer cone separable connectors. Along with interference fit, cold-shrinkable and heat-shrinkable terminations.

Nexans already provide a number of customers with pre-terminated high voltage cable leads and various applications can be utilised such as transformer to switchgear links, switchgear to array cables, in addition to testing of equipment.

In offshore applications this can help reduce time spent preparing and testing cables, therefore saving time in the tower and less reliance on the weather.

For onshore applications it becomes a plug and play system for linking equipment which enables OEMs to use leads for testing purposes.

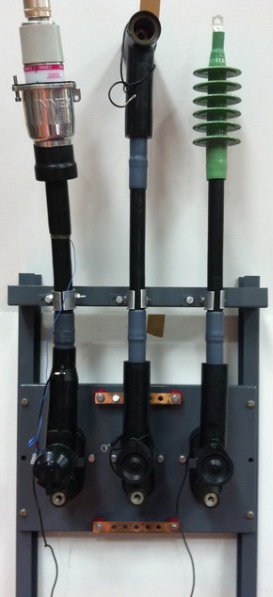

Pictured: High Voltage Leads Pre-Terminated for HV up to 52kV

High Voltage Leads Pre-Terminated for HV up to 52kV

Nexans Euromold Elastimold Cable Terminations for High Voltage Switchgear & Transformers

Euromold manufacture 11kV-33kV pre-moulded EPDM separable elbow connectors, heat shrink cable joints and cable terminations, cold shrink cable joints and cable terminations and epoxy bushings for high voltage switchgear and transformers.

Euromold cable accessories meet CENELEC HD929.1, CENELEC EN50180, IEC 137, IEEE 386 & 404. A screened cable connector is an encapsulated, safe to touch high voltage cable termination used to connect HV cables to the epoxy bushings of high voltage electrical equipment including transformers, switchgear and motors.

Futher Reading:

Video Playlist: Nexans Euromold Cable Connectors, Joints & Terminations
