Cable Terminations For High Voltage SIWO-KUL Cable 13.8/15KV BS6195

By Chris Dodds on 1st July, 2013

Follow @ThorneanDerrick

High Voltage Cable Terminations.

Utilising heat shrink technology to provide anti-track and stress control functions, T&D can provide high voltage cable terminations for SIWO-KUL 15kV cable - this type of high voltage cable is used to provide connections to machines, motors and generators. Heat shrink terminations rated up to 17.5kV are available in single core kits to allow connection of the SIWO-KUL cable to electrical equipment.

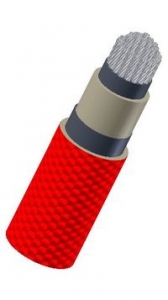

SIWO-KUL High Temperature Connection Cable

Conductor : tinned flexible copper to IEC60228 Class 5

Tape : semi-conductor tape, silicone rubber insulated, polyester tape

Braid : protective synthetic yarn braiding

Sheath : varnished sheath

Sheath Colour : Black

Rated Voltage :13.8/15 kV

Standards : Fire Endurance : Test according to IEC60331 and VDE 0472 part 814, at rated voltage, show a function time of at least 30 minutes
Fire Propagation: IEC 60332-3, IEEE 383
Rail car wiring approval: French specification: NFF16.101, BF1 approved
Dielectric Strength: UIC 895, BS6195 Type 5, voltage categories C, D, E and F

Applications : Suitable where high flexibility is required and high temperature conditions exist. Connection cable for machines, motors and generators. Type Approvals: Bureau Veritas & Lloyd's Register of Shipping.

SIWO-KUL is a very flexible single core connection cable. It is manufactured in the voltage range of 1.1kV, 3.3-4.2kV, 6.6-7.2kV and 13.8-15.0kV. The operating temperature for continuous service extends from -55º C up to +180º C. The use of silicone rubber, a high grade corona resistant insulation material, gives the cable excellent dielectric strength. The braided synthetic yarn covering, which is applied directly over the insulation, gives the cable, because of its short braiding pitch and high compactness, excellent mechanical protection by maintaining good flexibility. The varnishing of the braiding results in good anti-friction properties, high abrasion resistance and excellent chemical resistance against transformer oil, light fuel oils and most types of cleaning agents.

SIWO-KUL cables are halogen-free meaning, in the event of fire, no corrosive and toxic gases will be given off. Hence, damage caused by fire can be kept to a minimum. Compared with other plastic insulated cables, SIWO-KUL generates only little smoke and is therefore defined as “low smoke grade” according to the Guidelines for Fire Regulations. The cables also meet the requirements concerning fire propagation specified in IEEE 383 and IEC 60332-3 respectively.

SIWO-KUL High Voltage Power Cables - Offshore Topside Cables
