Single Core Polymeric (XLPE EPR) 15kV-17.5kV Heat Shrink Cable Termination Kits











SPS High Voltage Cable Termination Kits 6.6kV, 11kV, 33kV



Single Core Polymeric (XLPE EPR) 15kV-17.5kV



Heat Shrink Cable Termination Kits 25-630sqmm



High Voltage (HV) Cable Joints & Cable Terminations – Overview

T&D UK stock and distribute HV high voltage cable joint and cable termination kits for 3.3kV, 6.6kV, 11kV, 15kV, 33kV and Triplex cable systems.



This includes 15kV heat shrink joints and cable termination kits for single and 3 core high voltage power cables with XLPE, EPR or PILC insulation, copper wire screen or copper tape screens, unarmoured or armoured (AWA SWA) and with or without lead sheath cover.



SPS 15kV heat shrink single core polymeric cable terminations are tested and qualified as outlined in Cenelec standards HD 628 S1 and 629.1 S2 : 2006.

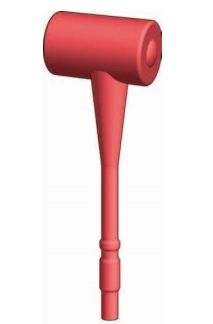

Pictured : 15kV Heat Shrink Cable Terminations. Suitable for terminating 15kV and 17.5kV Single Core Polymeric (XLPE & EPR) Cables, both indoor and outdoor kits available for high voltage cables.





SPS High Voltage 15kV Cable Termination Kit List (Typical)

15kV Single Core Cables Indoor

• Anti-track heat shrink core tubes x 3
• Stress control heat shrink tubes x 3
• Yellow stress relief tape for screen ends x 3
• Red mastic sealing tape x 1
• Cable cleaning and de-greasing wipes x 3
• Box, label, jointing instructions x 1

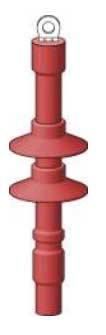

Note : Outdoor 15kV cable terminations include rain sheds.

• Cable Termination Accessories 15kV 17.5kV
• Cable Gland, Bushing Boots, Screen Earth Kit, Lugs (Crimp or Mechanical)

HV Cable Terminations & Joint Kits (Heat Shrink) - SPS Catalogue

SPS Joints & Terminations, 6.6-11-33kV Test Data (Cenelec HD629, VDE0278, IEC60502)
