Hadar HDL108 Zone 1 Ex emb Bulkhead / Fire Exit Recessed Luminaire For Hazardous Area Lighting

By Chris Dodds on 24th August, 2012

Follow @ThorneanDerrick

Hadar Hazardous Area Lighting

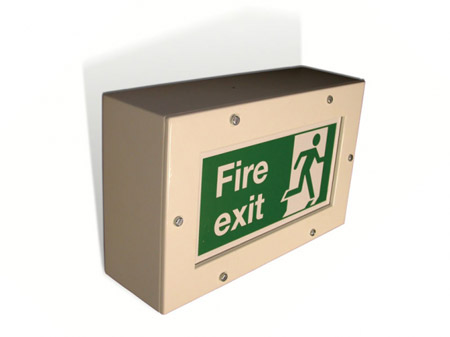

Hadar HDL 108 - Ex emb Bulkhead / Fire Exit Luminaire



Hadar HDL 108 light is ideal for exit signs - wall or ceiling mounted. The emergency version uses one fluorescent lamp which remains on at reduced output. Hadar HDL 108 is available in a stainless steel or steel powder coated enclosure and has a T rating of T3/T4 gas & dust.

Hadar HDL Ex emb Bulkhead / Fire Exit Luminaire Zone 1 & 21 Features

• 2 x 18W Compact fluorescent lamp for mains operatio
• Ideal for exit signs, wall or ceiling mounted
• Visible Glass area 300mm x 150mm (standard size for fire exit signage)
• Mild Steel painted as standard (Stainless steel also available)
• Simple installation
• Straightforward maintenance
• Recessed or surface mounting
• Lightweight and robust construction
• Mounting in any attitude
• Low profile
• Continuous monitoring of fluorescent lamps ensures safe end of life shutdown by electronic ballast in accordance with HSE safety notice 8/05
• Overvoltage protection 320V for 1 minute
• Quick lamp start and flicker free operation control gear
• Cable entries in any face or rear
• Can be supplied with signage or facility for end user to fit own
• Other warning signage can be used
• Incorporates the new "End of Life" (EoL) protection circuit ballast - according to DIN EN 61347-2-3 and IEC 60079-7 Ed.4 Annex H
• For Standard Ex emb Recessed Luminaire see data sheet HDL 102



Hadar HDL 108 Bulkhead Luminaire Electrical Specifications

Lamp Options	Power Consumption	Power Factor	Available Power Supplies
2 x 18W CFL STD	32W circuit watts at 240V – 0.14A (120V – 0.28A)	Better than 0.95	220V – 254V, 50/60 Hz AC/DC 110V – 130V, 50/60 Hz AC/DC Emergency version as above – AC only
2 x 18W CFL EM	36W circuit watts at 240V – 0.15A (120V – 0.30A)	Better than 0.95
