CSD RISE Fire, Water & Gas Tight Cable Duct Seals For Prescot Water Treatment Works

By Chris Dodds on 11th October, 2012

Follow @ThorneanDerrick

Duct Seals & Duct Sealing

CSD RISE Cable Duct Seal System

Fire, Gas & Watertight Sealing of Cable & Pipe Entries

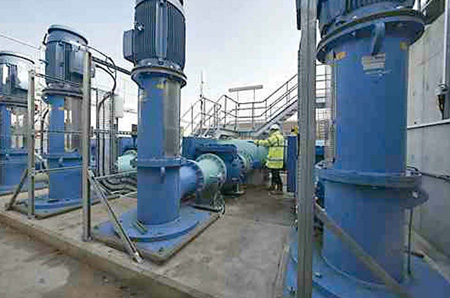

Today, T&D the leading distributor of CSD RISE cable duct sealing systems have supplied 25off CSD RISE Duct 150F kits to provide effective and reliable protection to cable duct penetrations at Prescot WTW, Merseyside - the water treatment plant currently going through a construction upgrade by United Utilities installed the CSD RISE cable duct seal kits to 150mm diameter cable duct to provide fire-stopping and protect LV-HV electrical services.

CSD RISE duct seals ensure WIMES compliance and are in service throughout the UK water industry including Severn Trent, Thames Water, Southern Water and Scottish Water sites. The CSD RISE duct seals are simple and fast to install providing a stable and vibration proof duct seal system against gas and water ingress up to 2.5 bar pressure.

CSD Duct Seal Benefits for Water Utilties:

• High level of water and gas tightness with up to 4 hour fire protection
• Suitable for trefoil cable duct sealing applications
• CSD RISE duct seals resist methane, hydrogen sulphide and chlorine
• CSD RISE duct seals are resistant to submersion in petrol and diesel

CSD RISE duct seals replace polyurethane expanding foam for compliance with DSEAR regulations and the requirement for gas tight seals - expanding foam should not be used for critical applications where duct sealing is required to prevent the ingress of harmful or flammable gases, liquids or smoke.

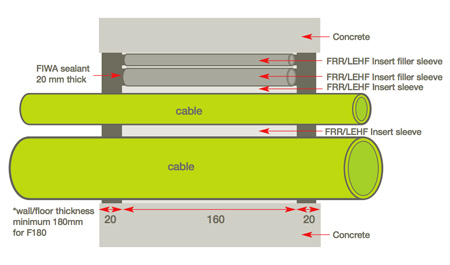

Using the CSD RISE insert sleeves at a length of 160mm and applying FIWA sealant to both faces of the opening, will provide a fire tight seal. When exposed to heat or flame, the advanced rubbers used within the system will resist heat and flame, assuring total conduit sealing protection against fire, heat, toxic and corrosive gases.

CSD Standard RISE Cable Duct Sealing Kits

Requirement	Size	Order Code
Fire, Water & Gas Tight	100mm Duct	RISEDUCT100F
Fire, Water & Gas Tight	150mm Duct	RISEDUCT150F
