Extraordinary Fibre Earth Wire Pull

By Chris Dodds on 9th September, 2015

Follow @ThorneanDerrick

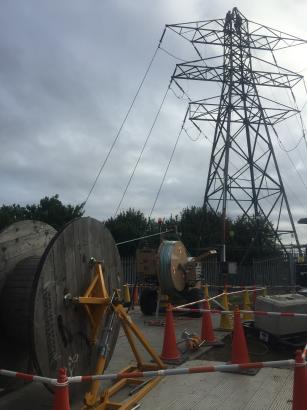

"Fibre earth wire pull completed today in Suffolk over 11 tower spans."

Terminal tower in 132kV compound. Crossing over 2 x dual carriageways, 1 x 25kV electrified railway, 1 x 33kV overhead line, 3 x 11kV overhead lines, 1 x minor road."

Included 1 x catenary system launch and 10 scaffold sides with 3 nets."

1 portable generation set connection, 1 x 11kV outage to create network mods and a further 11kV outage on day." Paul Everett.

Image : Paul Everett MIET. Utility Network Services Limited.
