Euromold Screened Separable Straight Plugs up to 24kV (HV) 200A Interface A, Euromold 151SP

By Chris Dodds on 25th September, 2012

Follow @ThorneanDerrick

Nexans Euromold Connectors

Euromold Screened Separable Straight Plugs

Euromold 151SP 200A Interface A 12-24kV



Euromold Separable Straight Plugs are designed to connect high voltage polymeric insulated cable to cable.

The Euromold 151SP plug mates with Euromold Interface A Elbows, Straight and Branch Joint Connectors. Euromold HV Straight Plug Connectors are used with 6.6kV, 11kV, 15kV, 17.5kV, 22kV HV high voltage cables and are suitable up to 24kV, 200Amps.



Nexans Euromold 151SP Screened Separable Straight Connector 12-24kV - Specification Design

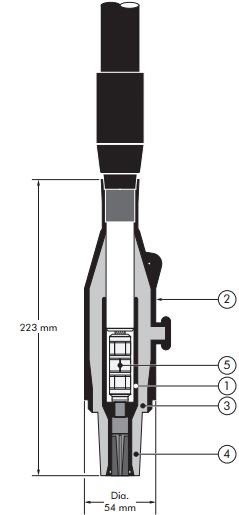

Euromold separable connector comprising:

1. Conductive EPDM insert
2. Conductive EPDM jacket
3. Insulating EPDM layer moulded between the insert and the jacket
4. Type A interface as described by CENELEC EN 50180 and 50181
5. Conductor connector

Technical characteristics of Euromold 151SP HV Straight Plugs :

• Thick conductive EPDM jacket providing a total safe to touch screen ensuring safety for personnel
• Each Euromold Separable Straight Plug is tested for AC withstand and partial discharge prior to leaving the factory

Nexans Euromold 151SP Screened Separable Straight Connector Specifications

Separable Plug Type	Volume Um	Current Ir	Conductor Sizes
			Min	Max
Nexans Euromold 151SP	12kV	200A	16mm²	95mm²
Nexans Euromold K151SP	24kV	200A	16mm²	95mm²



T&D distribute the complete range of Nexans (Euromold/Elastimold) HV cable bushings, screened separable connectors, cable joints and cable terminations in both heat shrink and cold shrink for high voltage systems.
