Nexans Euromold 151SP Screened Separable Straight Connector 12-24kV

Nexans Euromold Connectors

200 Series Interface A

Straight Connectors



Nexans Euromold 151SP is a straight plug specified to terminate and connect medium/high voltage cables and can be utilised with MV-HV elbow, straight and branch connectors in the following voltage classes:

• 6/10 (12kV)
• 6.35/11 (12kV)
• 8.7/15 (17.5kV)
• 12/20 (24kV)
• 12.7/22 (24kV)

 Nexans Euromold 151SP Screened Separable Straight Connectors

• Voltage 12kV 24kV
• Current (lr) 200 Amps

Application : Nexans 151SP separable straight plug designed to connect polymeric insulated cable to cable. Mates with the elbow, straight and branch joint connectors.

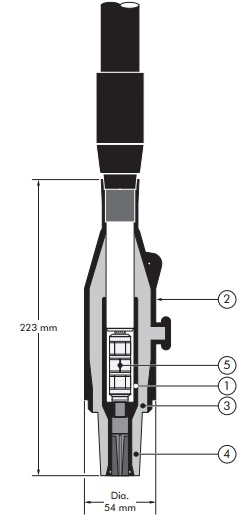

Nexans Euromold 151SP Screened Separable Straight Connector 12-24kV - Specification Design

Euromold separable connector comprising:

1. Conductive EPDM insert

2. Conductive EPDM jacket

3. Insulating EPDM layer moulded between the insert and the jacket

4. Type A interface as described by CENELEC EN 50180 and 50181

5. Conductor connector.

Nexans Euromold 151SP Screened Separable Straight Connector 12-24kV

Separable plug type	Voltage Um (kV)	Current Ir (A)	Conductor sizes (sqmm)
			Min	Max
Nexans Euromold 151SP	12	200	16	95
Nexans Euromold K151SP	24	200	16	95



Euromold 151SP Part Number	Dia. over core insulation (mm)
	min	max
151SP-A-X+11TL-FA/FAB	14.6	18.7
151SP-B-X+11TL-FB/FG	17.2	21.2
151SP-B-X+11TL-GA/GAB	19.7	23.0
151SP-C-X+11TL-GB/GH	22.2	26.4



Conductor sizes (sqmm)	Aluminium Cable		Copper Cable
	DIN Hexagonal Crimp	Deep Indent Crimp	DIN Hexagonal Crimp
16sqmm	-	-	16(K)M-11-2
25sqmm	25(K)M-12-2	25KM-12-1	25(K)M-11-2
35sqmm	35(K)M-12-2	35KM-12-1	35(K)M-11-2
50sqmm	50(K)M-12-2	50(K)M-12-1	50(K)M-11-2
70sqmm	70(K)M-12-2	70(K)M-12-1	70(K)M-11-2
95sqmm	95(K)M-12-2	95(K)M-12-1	95(K)M-11-2
