Ellis Patents Emperor Cable Cleats Tested at 156kA

By Chris Dodds on 26th September, 2012

Follow @ThorneanDerrick

Ellis Patents Stainless Steel Cable Cleats

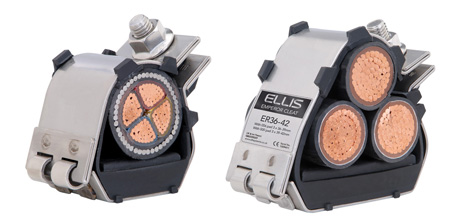

Ellis Patents Emperor Cable Cleats



Ellis Patents Emperor Cable Cleats tested at 156kA.

T&D distribute Ellis Patents cable cleats providing safety critical support to vital cable circuits. Cable cleats must withstand peak short circuit forces generated by the actual cable installation - Ellis Patents 3rd party certified cable cleats provide peace of mind containment of low and high voltage cables.

Ellis Patents Emperor cleats are available for trefoil and single cable applications.

Ellis Patents Emperor Cleats Features & Benefits

• Unique patented design
• Quick installation
• Offers protection against the harshest environmental conditions
• Frame is tightened and locked using a combination of M12 set screw, nyloc nut and washer in A4 stainless steel
• Screw head retainer in 'Zero-Halogen, Low Smoke & Fume' (LSF) nylon and Emperor LSF polymeric washer
• Protects and cushions the cables during short circuit conditions
• The Emperor Cleat is supplied with an integral LSF Polymeric liner and base pads

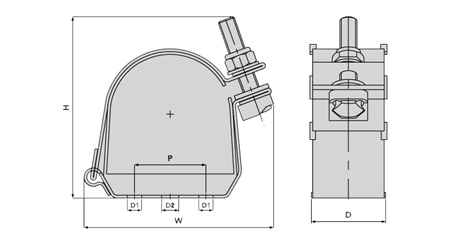

Ellis Patents Emperor Single Cable Cleat Specifications

Part No	Cable Range		Dimensions					Weight
	Min	Max	W	H	D	P	Fixing Holes
Ellis Patents ES32-39	32 mm	39 mm	91 mm	89 mm	54 mm	25 mm	2 x M10 + 1 x M12	450g
Ellis Patents  ES37-45	37 mm	45 mm	96 mm	93 mm	54 mm	25 mm	2 x M10 + 1 x M12	470g
Ellis Patents  ES44-52	44 mm	52 mm	99 mm	98 mm	54 mm	25 mm	2 x M10 + 1 x M12	480g
Ellis Patents  ES51-59	51 mm	59 mm	103 mm	102 mm	54 mm	25 mm	2 x M10 + 1 x M12	490g
Ellis Patents  ES58-66	58 mm	66 mm	109 mm	101 mm	54 mm	25 mm	2 x M10 + 1 x M12	500g
Ellis Patents  ES65-73	65 mm	73 mm	111 mm	103 mm	54 mm	25 mm	2 x M10 + 1 x M12	510g
Ellis Patents  ES73-85	73 mm	85 mm	135 mm	112 mm	54 mm	50 mm	2 x M10 + 1 x M12	640g
Ellis Patents  ES84-94	84 mm	94 mm	135 mm	135 mm	54 mm	50 mm	2 x M10 + 1 x M12	660g
Ellis Patents  ES94-118	94 mm	118 mm	160 mm	150 mm	54 mm	50 mm	2 x M10 + 1 x M12	710g
Ellis Patents  ES118-130	118 mm	130 mm	175 mm	160 mm	54 mm	75 mm	2 x M10 + 1 x M12	900g
Ellis Patents  ES127-150	127 mm	150 mm	180 mm	180 mm	54 mm	75 mm	2 x M10 + 1 x M12	940g

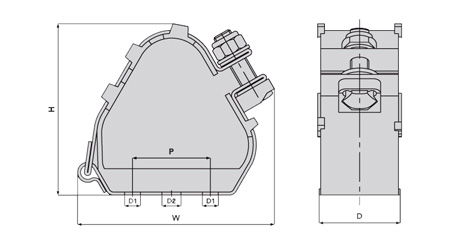

Ellis Patents Emperor Trefoil Cable Cleat Specifications

Part No	Cable Range		Dimensions					Weight
	Min	Max	W	H	D	P	Fixing Holes
Ellis Patents ER19-23	19 mm	23 mm	96 mm	83 mm	54 mm	25 mm	2 x M10 + 1 x M12	425g
Ellis Patents  ER23-28	23 mm	28 mm	96 mm	83 mm	54 mm	25 mm	2 x M10 + 1 x M12	425g
Ellis Patents  ER27-32	27 mm	32 mm	97 mm	88 mm	54 mm	25 mm	2 x M10 + 1 x M12	440g
Ellis Patents  ER30-35	30 mm	35 mm	99 mm	91 mm	54 mm	25 mm	2 x M10 + 1 x M12	445g
Ellis Patents  ER33-38	33 mm	38 mm	103 mm	95 mm	54 mm	25 mm	2 x M10 + 1 x M12	460g
Ellis Patents  ES36-42	36 mm	42 mm	124 mm	100 mm	54 mm	50 mm	2 x M10 + 1 x M12	600g
Ellis Patents  ER40-46	40 mm	46 mm	125 mm	106 mm	54 mm	50 mm	2 x M10 + 1 x M12	605g
Ellis Patents ER44-50	44 mm	50 mm	130 mm	117 mm	54 mm	50 mm	2 x M10 + 1 x M12	630g
Ellis Patents  ER48-55	48 mm	55 mm	132 mm	121 mm	54 mm	50 mm	2 x M10 + 1 x M12	640g
Ellis Patents  ER51-58	51 mm	58 mm	136 mm	128 mm	54 mm	50 mm	2 x M10 + 1 x M12	650g
Ellis Patents  ER55-62	55 mm	62 mm	160 mm	135 mm	54 mm	75 mm	2 x M10 + 1 x M12	810g
Ellis Patents  ER59-66	59 mm	66 mm	163 mm	143 mm	54 mm	75 mm	2 x M10 + 1 x M12	825g
Ellis Patents  ER63-70	63 mm	70 mm	166 mm	151 mm	54 mm	75 mm	2 x M10 + 1 x M12	850g
Ellis Patents  ER67-74	67 mm	74 mm	169 mm	158 mm	54 mm	75 mm	2 x M10 + 1 x M12	850g
Ellis Patents  ER71-78	71 mm	78 mm	172 mm	165 mm	54 mm	75 mm	2 x M10 + 1 x M12	890g
Ellis Patents  ER74-82	74 mm	82 mm	177 mm	171 mm	54 mm	75 mm	2 x M10 + 1 x M12	890g



Ellis Patents are global leaders in the innovation and manufacture of nylon, aluminium and stainless steel cable cleats - EP satisfy the operational requirements of the construction, oil, gas, rail, utilities, wind energy and power generation industries.

Video: Ellis Patents Emperor Cable Cleats - Tested at 156kA
