Ellis Patents 2F Two Hole Cableclamps LV Multi-Core Cables Supplied To Saudi Arabia

By Chris Dodds on 28th August, 2012

Follow @ThorneanDerrick



Ellis Patents Cable Cleats



T&D, a distributor for Ellis Patents cable cleats, have specified and supplied 2,000 2F-1202B cable cleats to the Gulf Deutsche Finance Building project, Riyadh, Saudi Arabia.

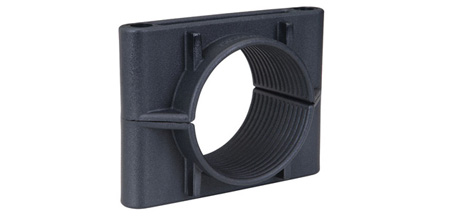

Ellis Patents 2F+ two hole cable clamp cleats are supplied as standard in black polypropylene (B), black flame retardant VO zero halogen phosphorus free nylon (LSF low smoke fume) or to special order in a London Underground approved material (LUL).

The Ellis Patents 2F cable cleats are suitable for fixing power cables in ondoor and outdoor applications, this includes low voltage (LV) and high voltage (HV) cable cleating applications.

The LUL version of the Ellis Patents 2F 2 hole cable clamp cleats are compliant with the requirements of London Underground Standard 1-085 for use on the underground rail system. Ellis two hole cable clamps have been tested in line with the International Standard of "Cable Cleats for Electrical Installations" IEC 61914 : 2009.

Ellis Patents Two Hole Cableclamp (2F+) Specifications

Part No	Material Suffix	Cable Dia Range	Dimensions				Fixing Hole	Weight
			W	H	D	P		B	LSF	LUL
Ellis Patents 2F+07	B/ LSF/ LUL	38mm - 46mm	92 mm	60 mm	54 mm	68 mm	2 x M10	73g	91g	119g
Ellis Patents 2F+08	B/ LSF/ LUL	46mm - 51mm	103 mm	71 mm	54 mm	79 mm	2 x M10	81g	110g	132g
Ellis Patents 2F+09	B/ LSF/ LUL	51mm - 57mm	103 mm	76 mm	54 mm	79 mm	2 x M10	95g	119g	155g
Ellis Patents 2F+10	B/ LSF/ LUL	57mm - 64mm	103 mm	82 mm	54 mm	79 mm	2 x M10	89g	123g	156g
Ellis Patents 2F+11	B/ LSF/ LUL	64mm - 70mm	130 mm	89 mm	54 mm	106 mm	2 x M10	116g	157g	189g
Ellis Patents 2F+1200	B/ LSF/ LUL	70mm - 76mm	128 mm	95 mm	75 mm	104 mm	2 x M12	148g	200g	300g
Ellis Patents 2F+1201	B/ LSF/ LUL	76mm - 83mm	135 mm	100 mm	75 mm	111 mm	2 x M12	163g	220g	330g
Ellis Patents 2F+1202	B/ LSF/ LUL	83mm - 90mm	143 mm	108 mm	75 mm	119 mm	2 x M12	183g	248g	343g
Ellis Patents 2F+131	B/ LSF/ LUL	90mm - 97mm	165 mm	115 mm	100 mm	138 mm	2 x M12	318g	430g	645g
Ellis Patents 2F+132	B/ LSF/ LUL	97mm - 105mm	171 mm	122 mm	100 mm	144 mm	2 x M12	333g	450g	675g
Ellis Patents 2F+141	B/ LSF/ LUL	105mm - 112mm	178 mm	130 mm	100 mm	151 mm	2 x M12	376g	508g	762g
Ellis Patents 2F+142	B/ LSF/ LUL	112mm - 120mm	187 mm	138 mm	125 mm	160 mm	2 x M12	483g	653g	980g
Ellis Patents 2F+151	B/ LSF/ LUL	120mm - 128mm	196 mm	148 mm	125 mm	168 mm	2 x M12	537g	716g	1074g
Ellis Patents 2F+152	B/ LSF/ LUL	128mm - 135mm	203 mm	158 mm	125 mm	176 mm	2 x M12	579g	772g	1158g
Ellis Patents 2F+161	B/ LSF/ LUL	135mm - 144mm	222 mm	168 mm	150 mm	190 mm	2 x M16	831g	1109g	1663g
Ellis Patents 2F+162	B/ LSF/ LUL	144mm - 152mm	232 mm	179 mm	150 mm	200 mm	2 x M16	902g	1203g	1804g
Ellis Patents 2F+171	B/ LSF/ LUL	152mm - 160mm	242 mm	190 mm	150 mm	210 mm	2 x M16	976g	1301g	1951g
Ellis Patents 2F+172	B/ LSF/ LUL	160mm - 168mm	252 mm	201 mm	150 mm	220 mm	2 x M16	1052g	1403g	2105g
