Panduit PanelMax DIN Rail Wiring Duct for Control Panel Builders

Panduit Cabling & Wiring Ducting & Trunking

Panduit PanelMax DIN Rail Wiring Duct

Panduit PanelMax DIN Rail Wiring Duct

T&D are specialist distributors of an extensive range of electrical equipment and cable accessories to the control panel building industry.

Panduit PanelMax DIN Rail Wiring Duct is an innovative wire management solution that maximizes space utilization within industrial enclosures for flexibility in panel layout and reduced material and installation costs.

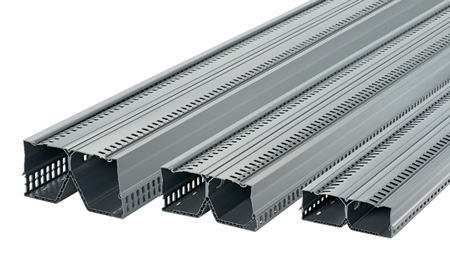

Panduit DIN Rail Wiring Duct

The unique Panduit PanelMax DIN design raises components from the panel surface for easier access and faster cable terminations. DIN rail wiring duct is compatible with common DIN rail and DIN mount components to satisfy a wide range of applications.

The Industrial Automation Solution from Panduit meets the most demanding requirements and applications with a broad range of product systems that aid in reducing design and assembly time, creating valuable panel space savings, providing easier installation and maintenance and improving reliability.

Panduit PanelMax DIN Rail Wiring Duct Key Features

  • Space-saving design
  • DIN rail and DIN component compatible
  • Integrated DIN rail fastening slot
  • Hinged and flexible covers
  • Slotted platform and sidewalls
  • Channel pass-through slots
  • Wire retainer accessory
  • Lead-free, UL compliant PVC material

DIN rail and DIN component compatible

Panduit PanelMax DIN Rail Wiring Duct Data
Part No. Part Description
Panduit DRD22LG6

Panduct Panelmax DIN rail wiring duct (base, covers and DIN rail fasteners), 2" height, PVC, light gray

Panduit DRD22WH6

Panduct Panelmax DIN rail wiring duct (base, covers and DIN rail fasteners), 2" height, PVC, white

Panduit DRD33LG6

Panduct Panelmax DIN rail wiring duct (base, covers and DIN rail fasteners), 3" height, PVC, light gray

Panduit DRD33WH6

Panduct Panelmax DIN rail wiring duct (base, covers and DIN rail fasteners), 3" height, PVC, white

Panduit DRD44LG6

Panduct Panelmax DIN rail wiring duct (base, covers and DIN rail fasteners), 4" height, PVC, light gray

Panduit DRD44WH6

Panduct Panelmax DIN rail wiring duct (base, covers and DIN rail fasteners), 4" height, PVC, white



Also : Panduit LSF Zero Halogen Cable & Wiring Duct & Panduit Noise Shielding Control Panel Ducting - EMI/RFI Reduction
