Panduit Noise Shielding Control Panel Ducting - EMI/RFI Reduction

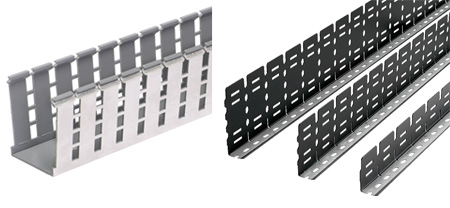

Panduit PanelMax Noise Mitigation Products

Panduit Panduct PanelMax Shielded Wiring Duct and Noise Shield

Control Panel Ducting for Reduced EMI RFI Interference

Panduit PanelMax Shielded Wiring Duct and Noise Shield

Panduit wiring duct is the premium wire management product for routing and concealing wiring in control panels. A wide variety of sizes, colours and materials are available to meet the wire capacity needs and space constraints of the smallest wall mounted panels to the largest integrated turnkey systems.

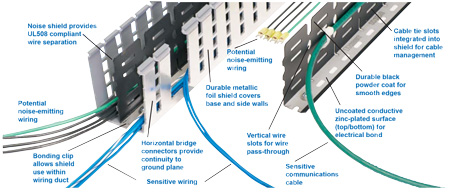

Pictured: Panduit Shielded Wiring Duct & Noise Shield Divider Wall

Panduit Shielded Wiring Duct & Noise Shield Divider Wall

Panduit PanelMax Shielded Wiring Duct and Noise Shield route, separate, and shield sensitive wiring from noise emission. Panduit PanelMax noise mitigation products save valuable space within industrial control panels by allowing pathways to be placed in closer proximity.

Panduit shielding provides The shielding provides up to 20dB reduction in noise (EMI/RFI), or 90% noise voltage reduction (NVR). The shielded wiring duct and noise shield are designed for flexibilty and to be used for a wide range of applications.



Panduit PanelMax Shielded Wiring Duct Key Features

  • Continuous foil shield
  • Slotted sidewalls with horizontal bridge connectors
  • High-quality Panduit PVC wiring duct base
  • Upper and lower score lines

Panduit PanelMax Noise Shield Key Features

  • Metal noise barrier
  • Bonding clip
  • Segmented design
  • Vertical wall slots
  • Horizontal cable tie slots
  • Zinc-plated steel and durable black powder-coated surfaces

Panduit PanelMax Shielded Wiring Duct and Noise Shield


Panduit PanelMax Shielded Wiring Duct & Noise Shield Data

Part No

Description

Panduit PanelMax Shielded Wiring Duct

Panduit PanelMax Shielded Wiring Duct

Panduit G2X2LG6EMI

2" x 2" PanelMax Shielded Wiring Duct; 6-foot length. Foil metal finish includes anti-oxidizing paste.

Panduit G2X3LG6EMI

2" x 3" PanelMax Shielded Wiring Duct; 6-foot length. Foil metal finish includes anti-oxidizing paste.

Panduit G2X4LG6EMI

2" x 4" PanelMax Shielded Wiring Duct; 6-foot length. Foil metal finish includes anti-oxidizing paste.

Panduit PanelMax Noise Shield & Bonding Clips

Panduit PanelMax Noise Shield & Bonding Clips

Panduit SD2EMI

EMI noise shield kit for 2" height Panduit wiring duct; two 3-foot sections, four bonding clips, and anti-oxidizing paste

Panduit SD3EMI

EMI noise shield kit for 3" height Panduit wiring duct; two 3-foot sections, four bonding clips, and anti-oxidizing paste

Panduit SD4EMI

EMI noise shield kit for 4" height Panduit wiring duct; two 3-foot sections, four bonding clips, and anti-oxidizing paste

Panduit SDCLIP

Noise shield replacement bonding clips – 2 clips



Video: Product Showcase: Panduit® PanelMax™ Shielded Wiring Duct via Panduit Youtube
