CSD RISE Cable Duct System Installed At Roos Wind Farm Renewable Energy Project

By Chris Dodds on 16th August, 2012

Follow @ThorneanDerrick

Duct Seals & Duct Sealing

Water Tight & Gas Tight Sealing for Cable Ducts

CSD RISE Duct Seal System



T&D have supplied McNicholas plc with CSD RISE Cable Duct Seals to provide gas and watertight sealing to 100mm diameter high voltage cable ducts at Roos Windfarm, Hull UK.

Pictured: Roos Wind Farm, East Riding of Yorkshire

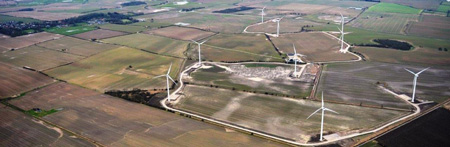

Roos Wind Farm lies between the villages of Roos and Burton Pidsea in the East Riding of Yorkshire. It comprises nine turnines, with associated infrastructure such as access tracks, meterological mast and control room.

Roos Wind Farm is fully operational and can generate up to 17.1 megawatts of renewable electricity, which is roughly equivalent to the average annual consumption of 11% of all the homes in the East Riding of Yorkshire.

Roos Wind Farm Project Layout & Infrastructure

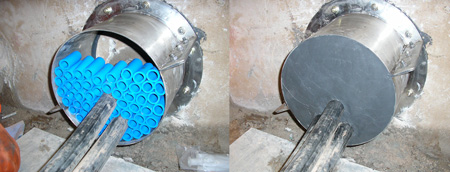

Pictured: CSD RISE Duct Seal

CSD products are guaranteed to resolve any sealing challenges across the power generation industry. CSD products guarantee safety and protection of life and assets with seals that will continue to perform for the lifetime of the structure.

CSD RISE Duct Seal is a multi-cable and pipe transit sealing system for cable ducts and building entries. The RISE duct sealing provides protection against flood and gas ingress, a fire rated version is also available which provides up to 4 hours of fire protection.

Pictured: CSD RISE Duct Installation Layout

CSD RISE cable duct system consists of only two components:

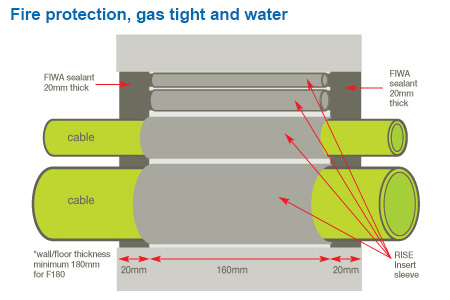

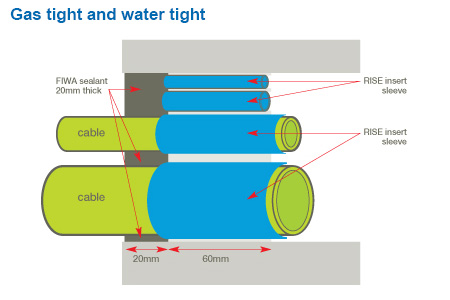

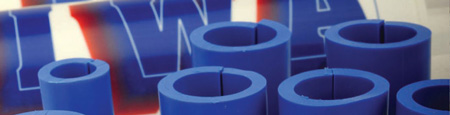

1. RISE rubber insert sleeves, used to guarantee cable separation and as a backing for the sealant layer
2. FIWA sealant, a high quality silicone based, fire stopping, water repellent sealant which consequently makes the system fast and simple to install.





CSD RISE Duct Multi-Cable & Pipe Transit Standard Kit Selection

Duct Size	Gas & Watertight Order Code	Fire, Gas & Watertight Order Code
3x50mm	RISEDUCT3X50WG	RISEDUCT3X50F
100mm	RISEDUCT100WG	RISEDUCT100F
125mm	RISEDUCT125WG​	RISEDUCT125F
150mm	RISEDUCT150WG​	RISEDUCT150F
160mm	RISEDUCT160WG​	RISEDUCT160F
200mm	RISEDUCT200WG	RISEDUCT200F
225mm	RISEDUCT225WG	RISEDUCT225F
250mm	RISEDUCT250WG​	RISEDUCT250F
300mm	RISEDUCT300WG	RISEDUCT300F



Video: CSD RISE Cable Duct Sealing Systems - Installation Video



• Further Reading

​CSD RISE Cable Duct Sealing Systems Prevent Flooding To Substations

CSD RISE Duct Seals & FIWA - Petrol, Diesel & Transformer Oil Resistance
