Cembre Contained Palm Cable Lugs For LV Circuit Breakers

By Chris Dodds on 12th July, 2013

Follow @ThorneanDerrick

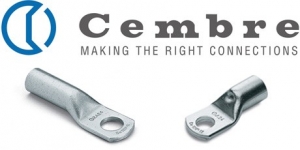

Cembre Cable Lugs - Contained Narrow Palm Cable Terminals.

Palm widths of standard copper lugs are often too wide to fit 150A to 250A circuit breakers, therefore preventing low voltage cable termination into the terminal blocks.

Cembre A-M range of copper tube cable lugs to terminate stranded copper conductors feature contained palms for circuit breakers with reduced space terminal blocks - the contained palm width lug allows an immediate and easier cable termination. The Cembre cable lug barrel is provided with an internal taper to ease the introduction of the conductor - Cembre copper cable lugs are annealed to guarantee optimum ductility and are tin-plated. Cembre ring tongue terminals with contained palms suit 10sqmm, 16sqmm, 25sqmm, 35sqmm, 50sqmm 70sqmm, 95sqmm, 120sqmm, 150sqmm, 185sqmm, 240sqmm and 300sqmm. The complete range of Cembre narrow palm copper cable lugs can be crimped and installed using Cembre HT120 Hydraulic Crimping Tools.

Cembre Cable Lugs Benefits

* Cable lugs are annealed to ensure optimum ductility during the cable crimping installation

* Cable lugs are electrolytically tin-plated to avoid oxidation

* Cable lug palms are maked with Cembre logo and part number.

Cembre provide an entirely  "Matched" crimping system - providing electrical crimp connectors, crimp die sets and crimp tools.
