Cembre B70M-P24 Hydraulic Pump

By on 20th January, 2014

Follow @ThorneanDerrick

Cembre Crimping & Cutting Tools.

Cembre B70M-P24 Hydraulic Pump.

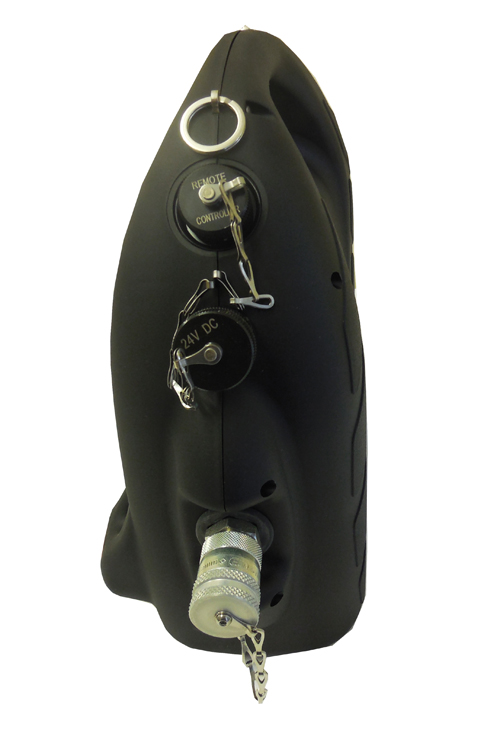

The Cembre B70M-P24 Hydraulic Pump is used in conjunction with the Cembre range of hydraulic cable crimping and cutting head tools. The Cembre B70M-P24 hydraulic pump  is an electro-hydraulic pump which operates at 24V dc by battery for independent use. The B70M-P24 is also available insulated and operated by a remote neumatic hand controller and supplied with a non-conductive hose.



Cembre B70M-P24 Hydraulic Pump is supplied with the following:

• Powerful 24V 3.3Ah Ni-MH battery

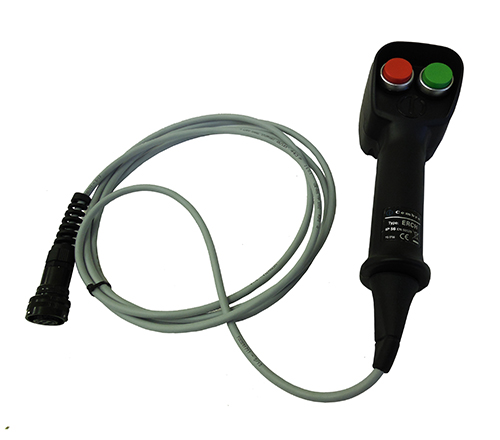

• Plug-in remote hand controller with bezel-locking electrical connector

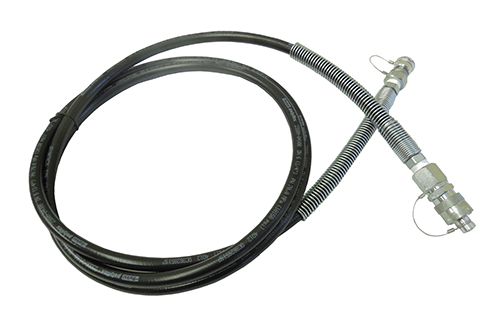

• 3metre, high pressure flexible hose with automatic self-lock, quick couplers

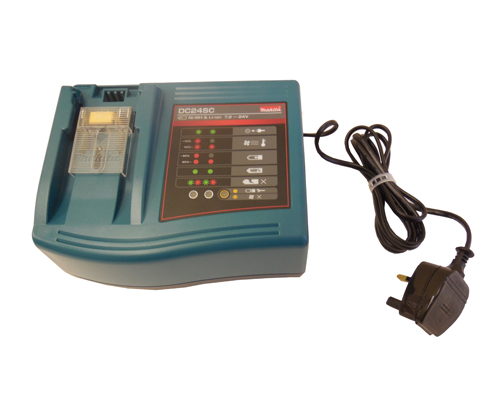

• Self-ventilating battery charger for in-house use

• Shoulder strap for attachment to rings provided on pump

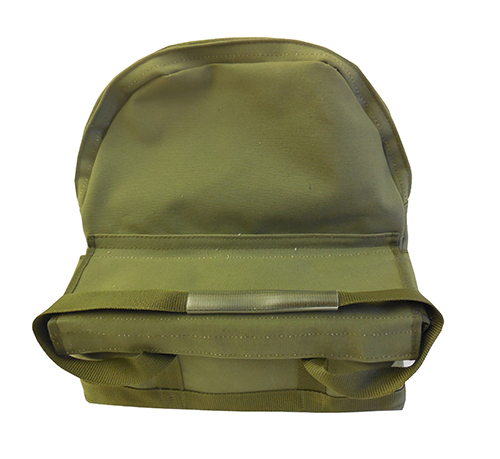

• Canvas accessories bag



Cembre B70M-P24 Hydraulic Pump Specifications

Operating Pressure - 700 bar

Length - 390mm

Width - 163mm

Height - 323mm

Weight - 9.2kg







Video: Cembre B70M-P24 Hydraulic Pump

Cembre Catalogue - Cembre B70M-P24 Hydraulic Pump

Cembre B70M-P24 Hydraulic Pump

Category:  Cable Crimping & Cutting Tools
