Catu MT5805 High Voltage Portable Earth Kit - Short Circuiting & Earthing Kit (20KA)

By Chris Dodds on 30th October, 2012

Follow us on LinkedIn

Catu MT5805 High Voltage Portable Earth Kit - Short Circuiting & Earthing Kit (20KA)

Catu Electrical Safety Equipment

Catu MT5805 Short Circuiting & Earthing Kit (20KA)

IEC 61230 - CATU MT5805

CATU MT5805 Short Circuiting & Earthing Kits (20KA) are standard high voltage portable earth kits that have been designed and tested to IEC 61230.

CATU MT5805 Short-Circuiting & Earthing Systems For MV Substations

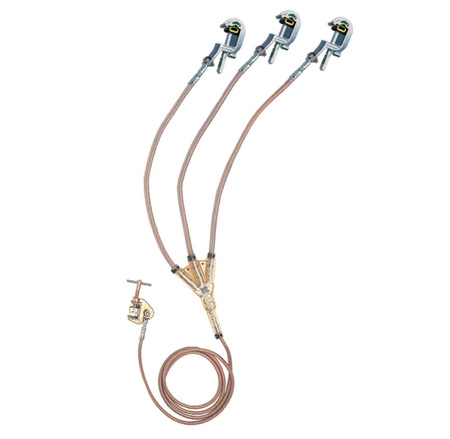

Catu MT5805 Short Circuiting & Earthing Kit

The CATU MT-5805 kit is supplied with 3 extra-flexible copper 95mm cables of 1.5m length and 1 extra-flexible copper cable of 2.5m length. The entire kit is delivered in the CATU M-78665 plastic carry case.



CATU MT-5805 Short-Circuiting & Earthing System Specifications

Reference

Rating Installation On Fixed Points Composition

Connection Sets

CATU MT-5805

20kA/1s

Ø 5-35

Length - 16-40

Width - 5-40

3 clamps MT-815-C

1 MT-840/1

3 cables 95 mm²

1 earth cable 35 mm²

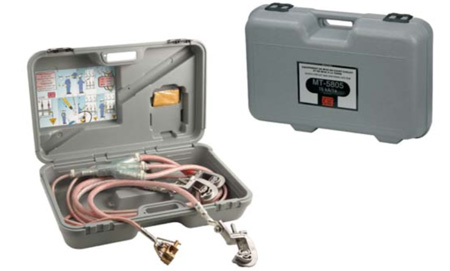

 CATU MT-5805 Short-Circuiting & Earthing System 20kA

T&D are Catu Electrical Safety Equipment stockists and distributors.
