CATU MT-1920 IEC Short-Circuiting & Earthing Systems For MV Substations



CATU design and customise portable earthing & short circuiting kits to suit low, high and extra high voltage earthing applications with consideration to dimensions between points to be earthed, enclosed plant or limited working access, equipment fault level and short circuit rating of earthing system required.

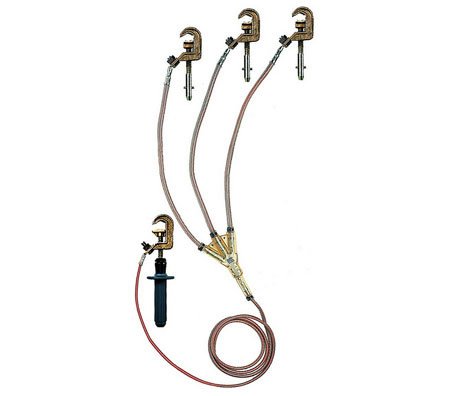

Pictured: CATU MT-1920 Portable Earthing & Short Circuiting Kit

CATU MT-1920 portable earthing & short circuiting kits are available with a choice of earth clamps for both live-end and earth-end, jumper clamps for low voltage switchboards and overhead line clamps.



CATU MT-1920 Portable Earthing & Short Circuiting Kit Specifications

Reference	Rating	Installation On Fixed Points	Composition	Connection Set

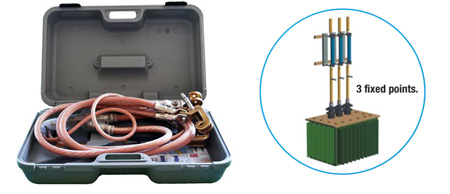

CATU MT-1920	30kA/1s	Ø 25mm MT-3951 range	3 clamps MT-1921-E 1 MT-1921	3 cables 150 mm² 1 earth cable 50 mm²



Typical CATU portable short circuiting and earthing system applications:

• Overhead transmission and distribution lines
• Susbstation busbars
• Rail electrification
• Transformer and switchgear terminals



IEC 61230: IEC 61230 is applicable to portable equipment, with or without matching connection points, for temporary earthing or earthing and short-circuiting of electrically isolated or de-energized a.c. and d.c. installations, distribution and transmission networks, whether they are overhead or underground or of low or high voltage.

For more information Click Here: CATU Portable Earthing & Short Circuiting Systems
