CATU Detex CL-8-36 High Voltage Two Pole Phase Comparators

By Chris Dodds on 26th August, 2013

Follow @ThorneanDerrick

CATU Electrical Safety Equipment

CATU CL-8-36 Two Pole Phase Comparator



CATU Detex CL-8-36 Two Pole Phase Comparator detects voltage differences between any two points of an electrical installation indicated by LED's.

The CATU CL-8-36 also enables the assessment of the order of the residual current induced by nearby live lines, live cables or circuits. This differentiates voltages from the one provided directly from a high voltage source. CATU Detex CL-8-36 phase comparators functions over 2-33/36kV voltages with assembled length of 1.25 metres.

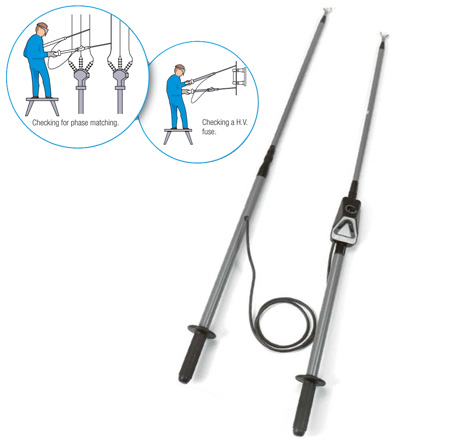

Unlike single core voltage testers, dual core (two pole) testers can recognise potential voltage differences between any two points in a high voltage installation. Primarily reserved for conductors of the same phase (matching), CATU detectors can also be used for dual core detection and for testing high voltage fuses.

CATU DETEX CL-8-36 HV Phase Comparators Specifications

Reference	Voltage	Total Length Aerial		Weight
		Assembled	Dismantled
CATU CL-8-36	2 to 36kV	1.25m	0.62m	1100g
CATU CL-8-36/1*	2 to 36kV	1.25m	0.62m	1300g

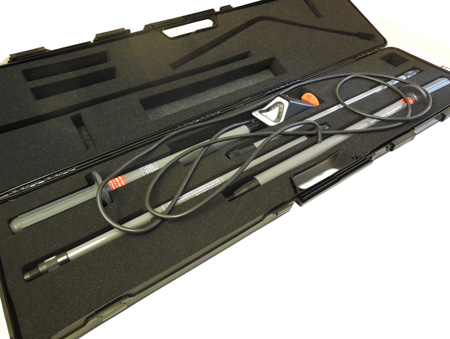

*Includes 2 probe extenders 0.550m. Delivered in a plastic case

CATU are committed to Electrical Safety Equipment providing a full range of low and high voltage (LV-HV) equipment complying with IEC standards for use on underground cables, switchgear, transformers and overhead lines.



Video: CATU Detex CL-8-36 High Voltage Two Pole Phase Comparator
